PROFIBUSB2 pinShieldedPROFIBUS
PROFIBUS M12 Bus Flange (Back Mounting, 2 pin)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FLB-M12-M02B(M16)-0.5
FLB-M12-F02B(M16)-0.5
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 125 V |
| Working Temp. | -25...+80°C |
| Connection | PreMould |
| IP Rating | IP67 |

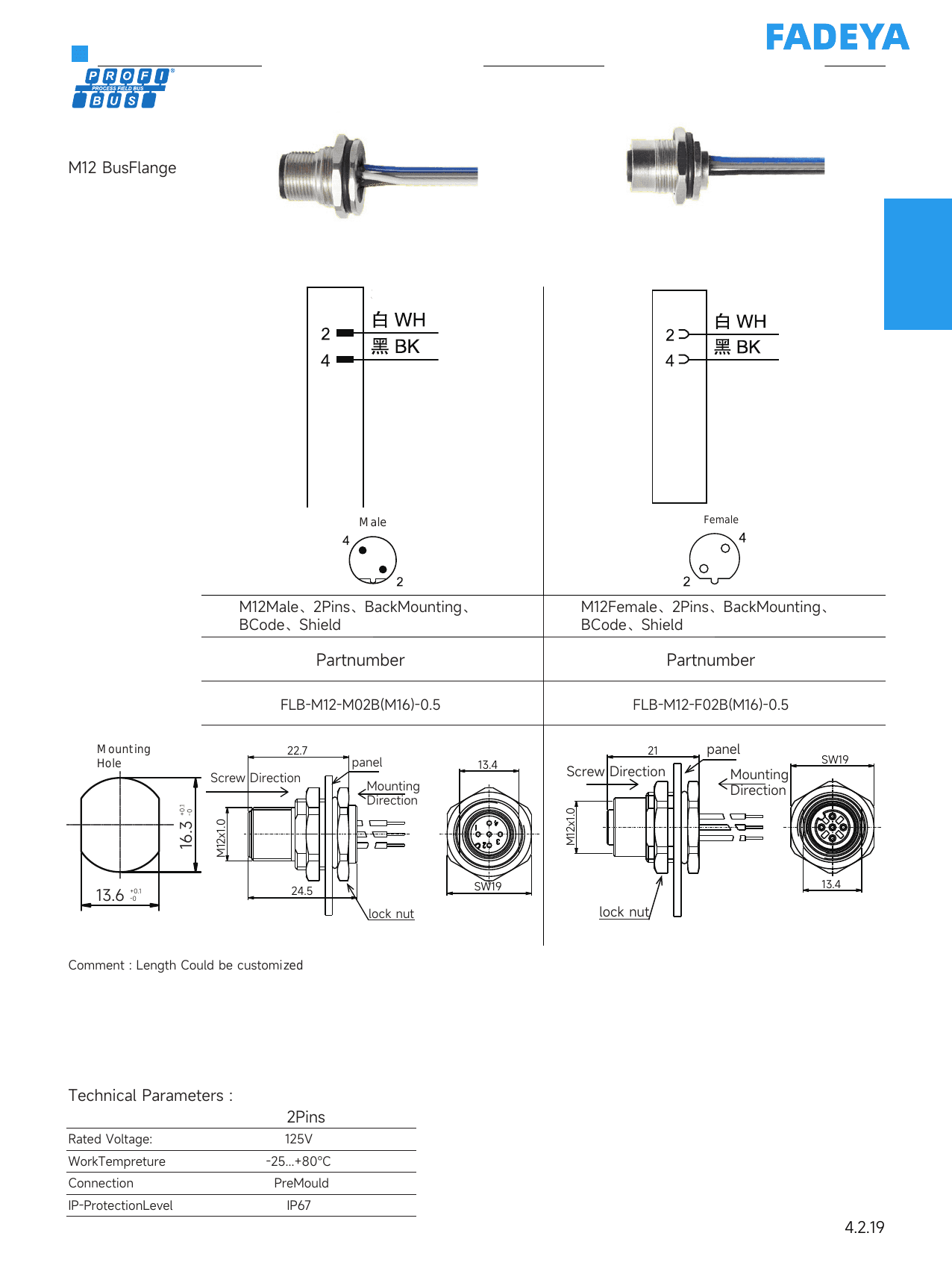

Datasheet
