PROFIBUS M12 Terminal Resistor (B-Code)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12B-M04S-RES
M12B-F04S-RES
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Working Temp. | -25...+80°C |
| Resistor Network | 220 / 390 Ω |
| IP Rating | IP67 |

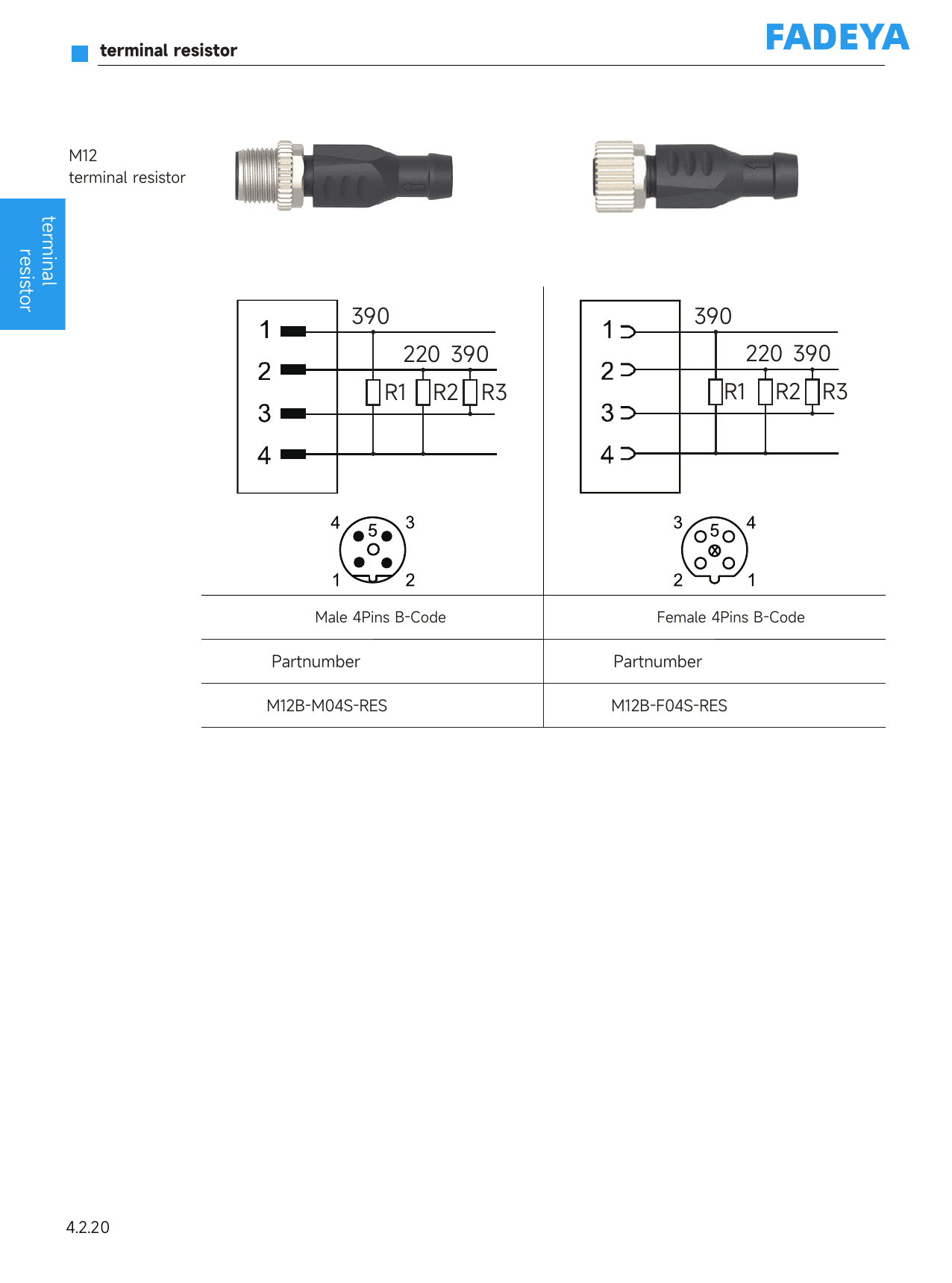

Datasheet
