PROFIBUS M12 B-Code Bus Connector (Field-Wireable, Shielded)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12B-M05S-SH
M12B-M05A-SH
M12B-F05S-SH
M12B-F05A-SH
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 125 V |
| Working Temp. | -25...+80°C |
| Connection | Screw Connection |
| Wire Gauge | 0.75 mm² |
| IP Rating | IP67 |

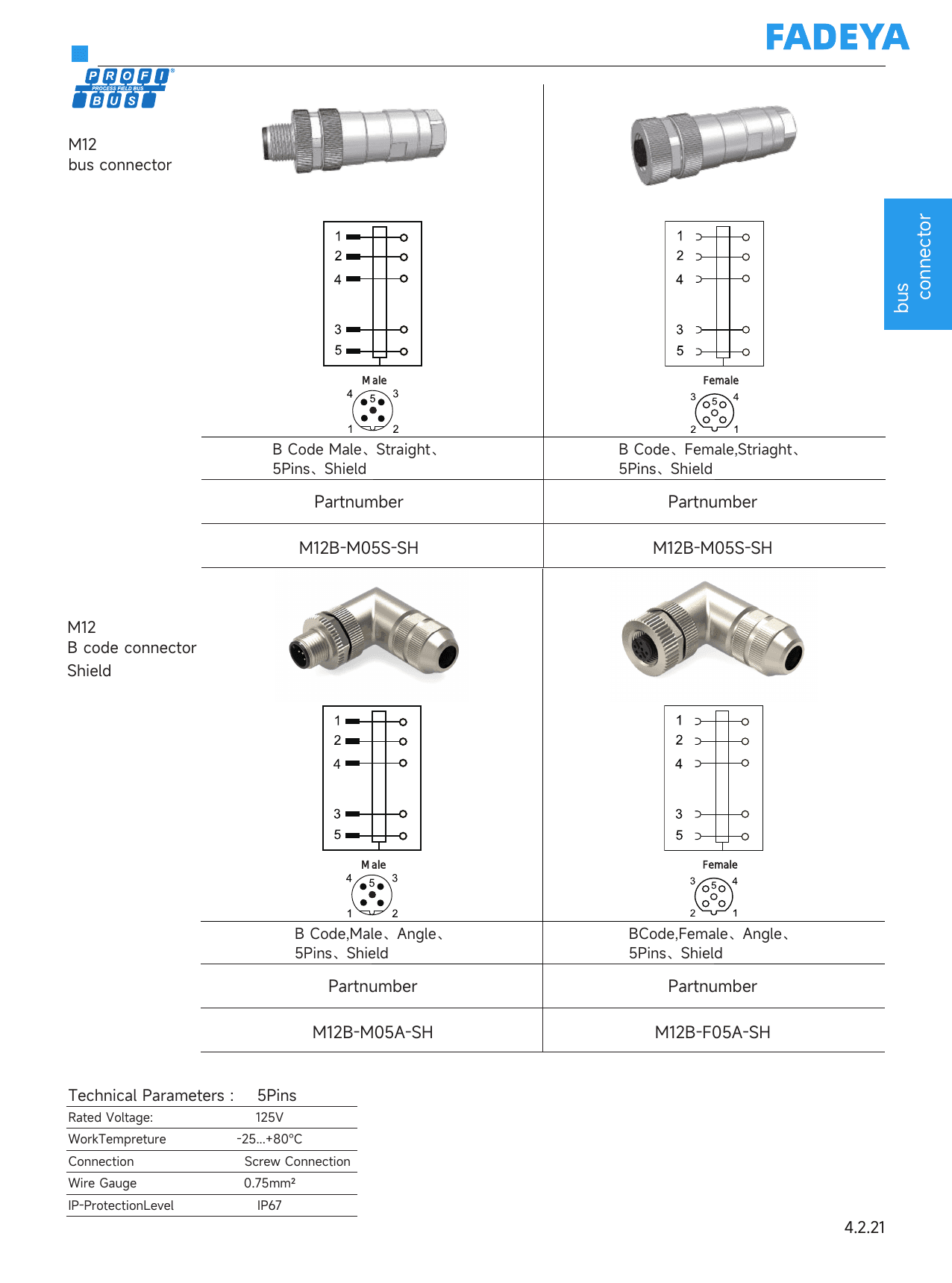

Datasheet
