DeviceNet 7/8" Connector (Field-Wireable, 5 pin)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-M05S
7/8-M05A
7/8-F05S
7/8-F05A
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 300 V AC/DC |
| Working Temp. | -25...+80°C |
| Cross Section | 5 x 1.5 mm² |
| IP Rating | IP65 |

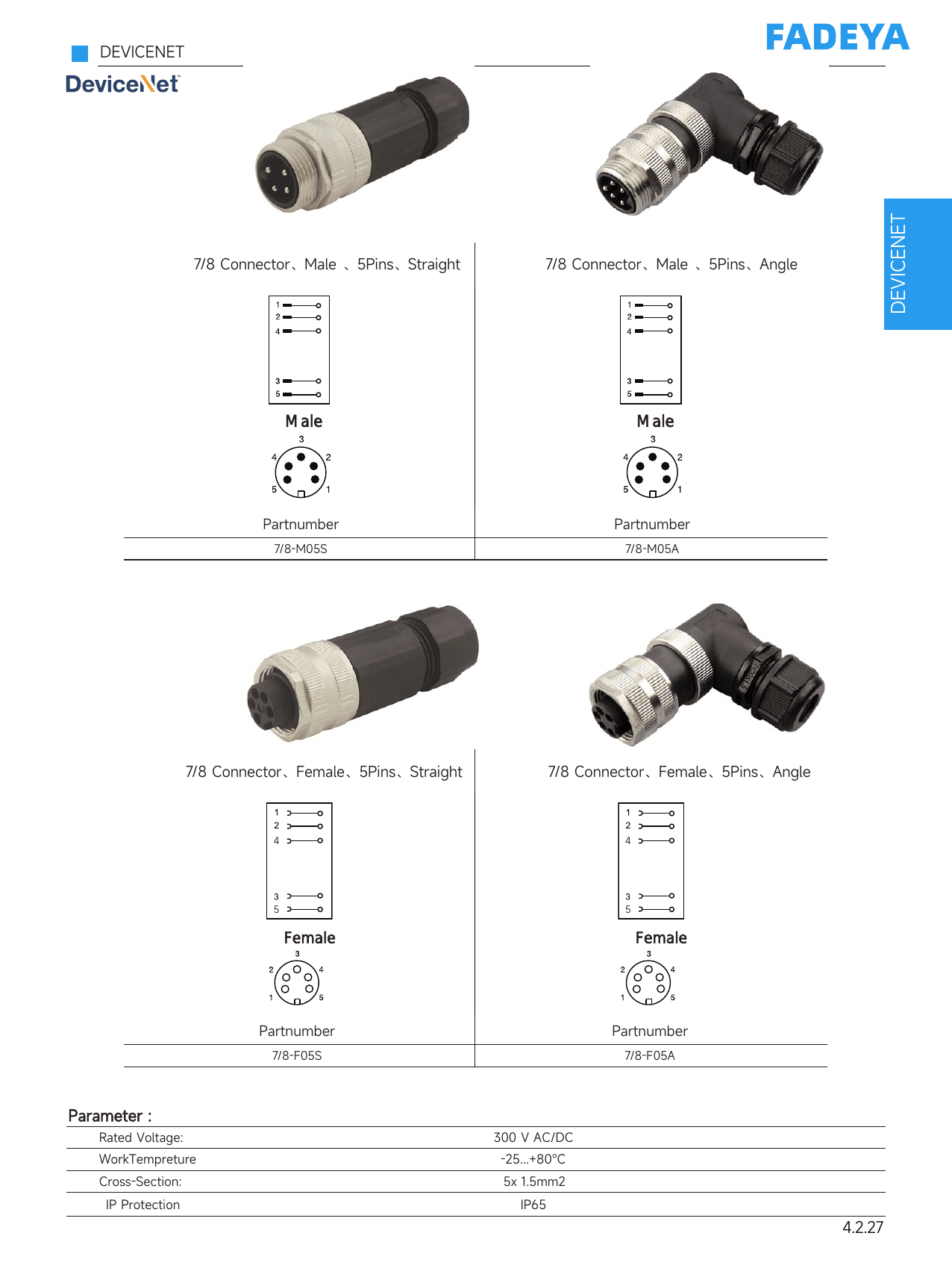

Datasheet
