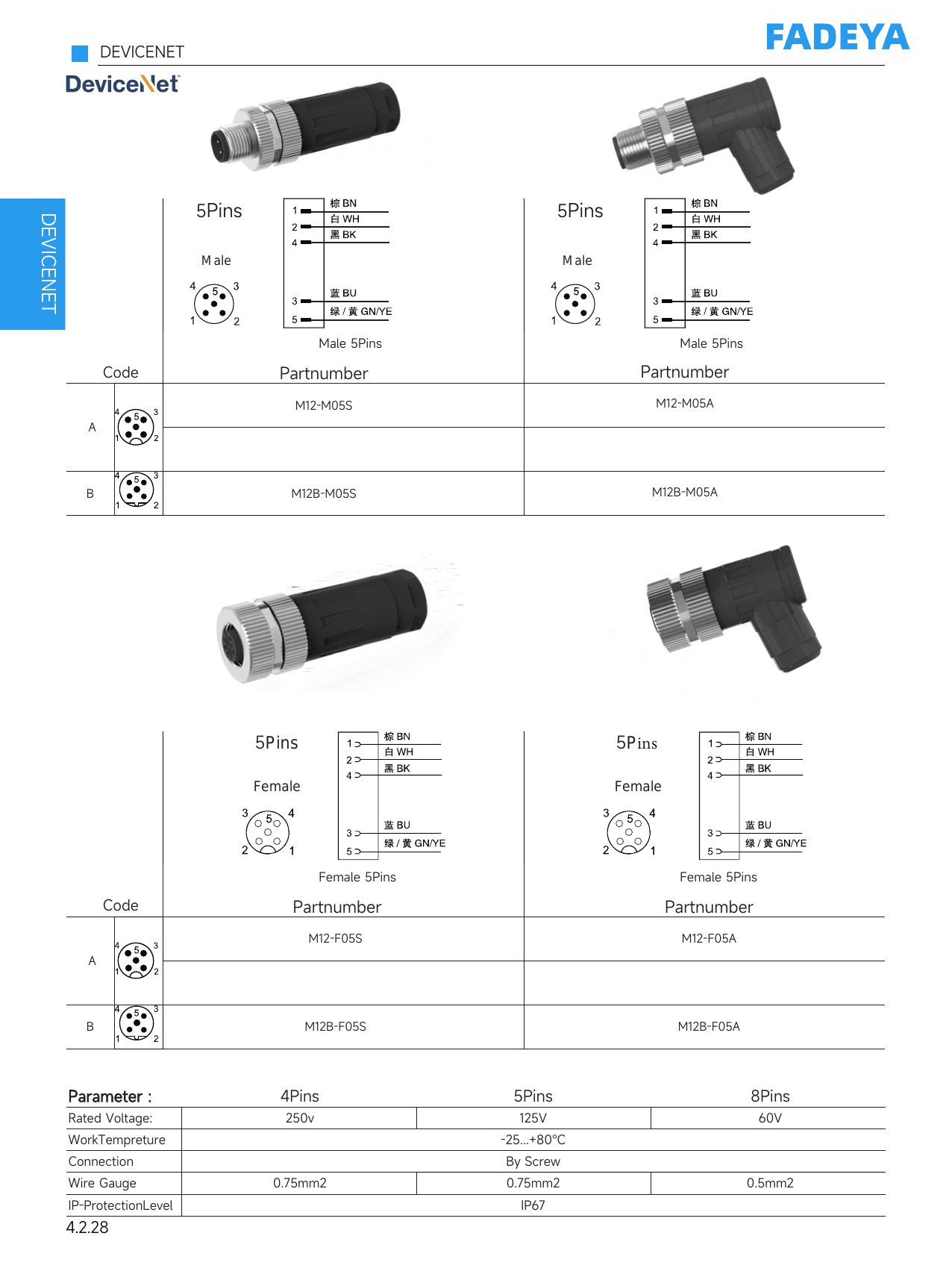

DeviceNet M12 / 7/8" Connector Overview (Field-Wireable)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12-M05S
M12-M05A
M12B-M05S
M12B-M05A
M12-F05S
M12-F05A
M12B-F05S
M12B-F05A
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 4-pin 250V / 5-pin 125V / 8-pin 60V |
| Working Temp. | -25...+80°C |
| Connection | By Screw |
| Wire Gauge | 0.75 mm² (4/5-pin) · 0.5 mm² (8-pin) |
| IP Rating | IP67 |
