DeviceNet T-Connector (7/8" and M12/7/8", 5 pin)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12TF05-7/8F05-7/8M05
7/8T-M05/2F05
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 300 V AC/DC |
| Working Current | 8 A |
| Working Temp. | -40...+90°C |
| IP Rating | IP67 (EN 60529) |

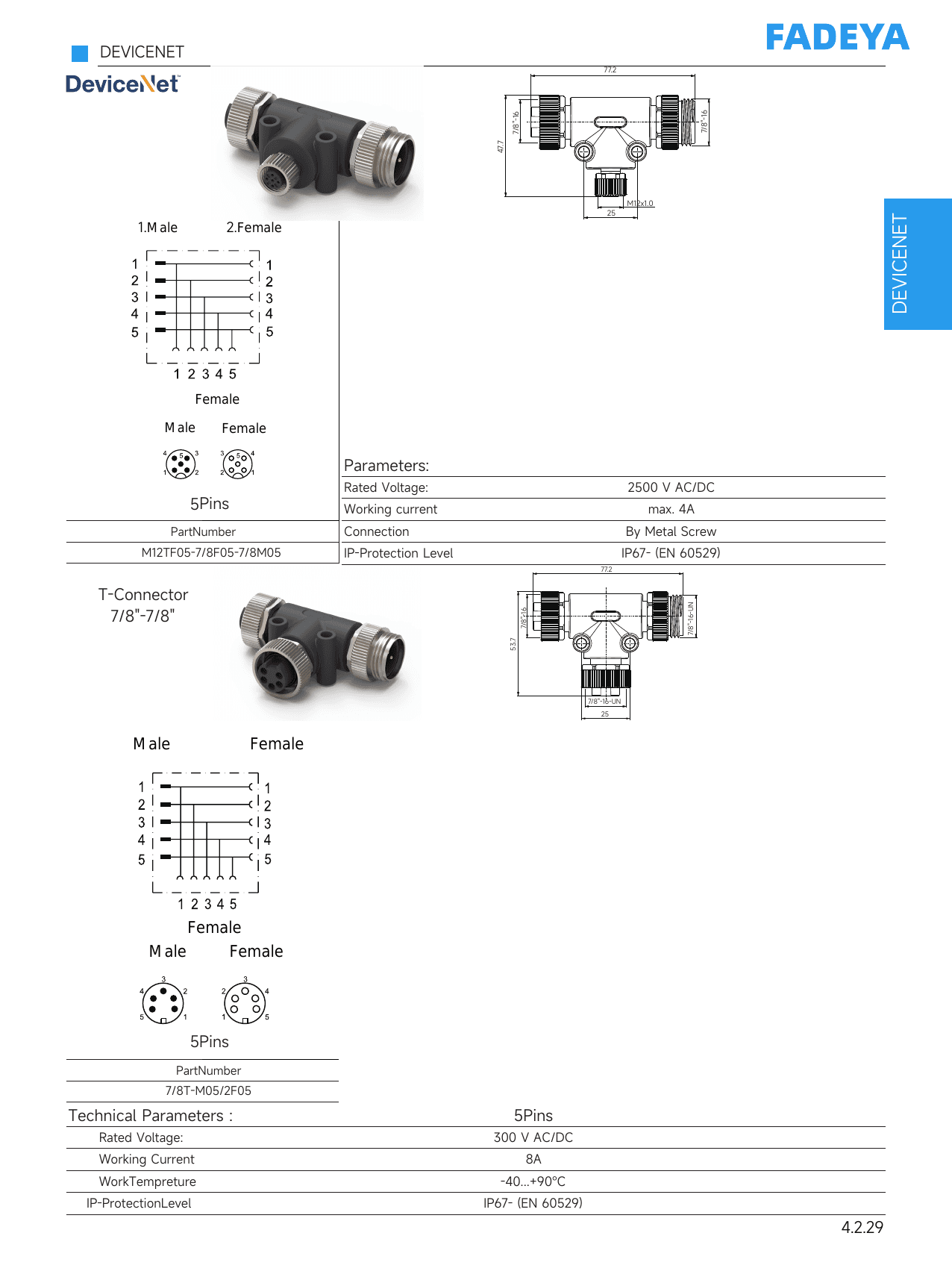

Datasheet
