DeviceNet M12 T-Connector (5 pin, Multiple Types)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12TA-F05/M05-F05
M12TD-M05/M05-F05
M12TL-M04/2F04
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Rated Voltage | 60 V AC/DC (TA/TD) · 63 V AC/DC (TL) |
| Working Current | max. 4A (TA/TD) · max. 12A (TL) |
| Working Temp. | -40...+90°C |
| Connection | By Screw Nut |
| IP Rating | IP67 |

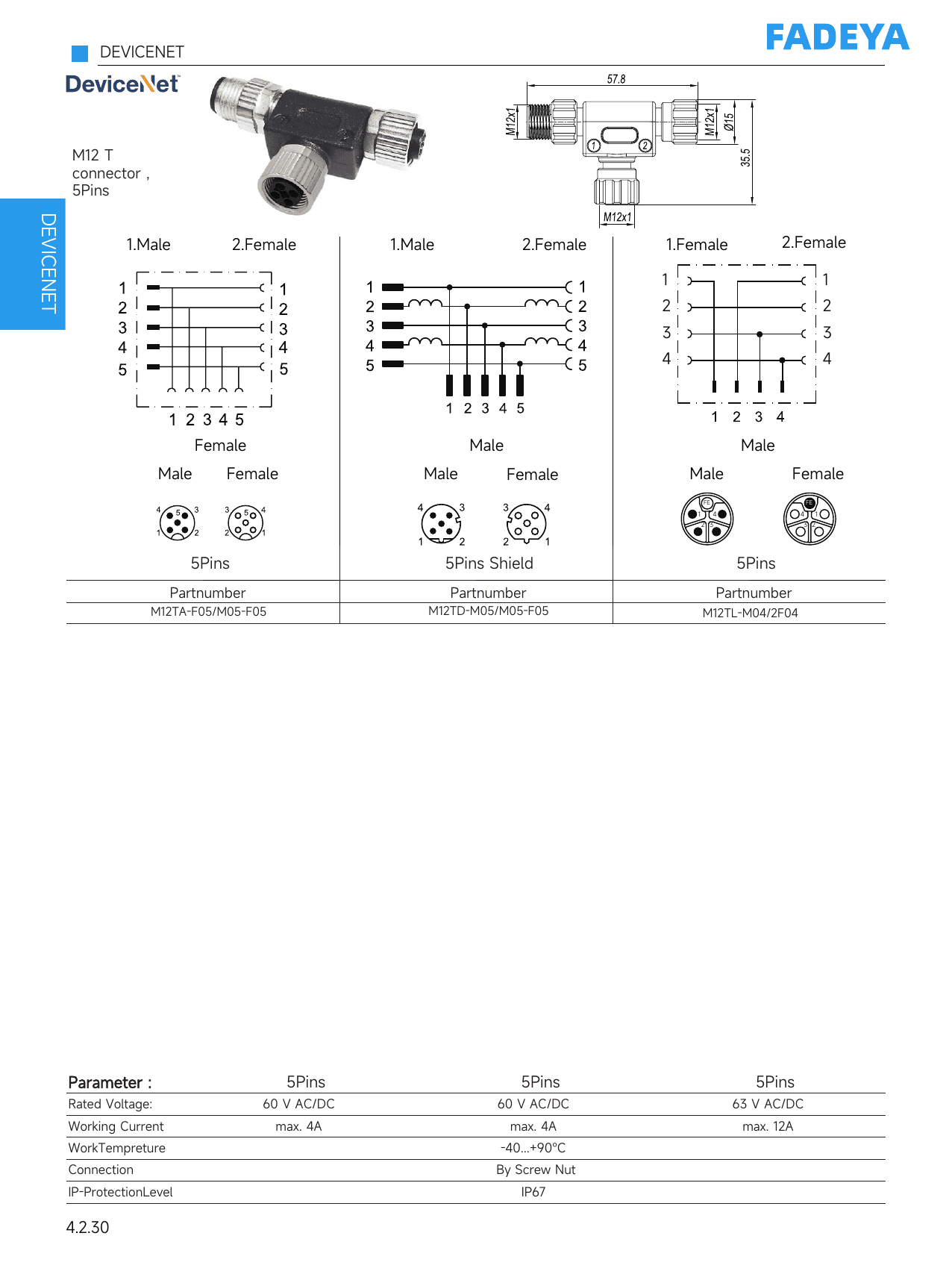

Datasheet
