DeviceNet Terminal Resistor (7/8" and M12 CAN)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
7/8-MS-RES-DN
7/8-FS-RES-DN
M12B-M05S-RES-CAN
M12B-F05S-RES-CAN
Cable lengths can be customized. Coding follows protocol standard: PROFIBUS = B-Code (violet), DeviceNet = A-Code/7-8 (CAN), PROFINET/EtherNet-IP/EtherCAT = D-Code (green, CAT5e), 10G = X-Code (CAT6A).
Technical Parameters
| Resistor | 120 Ω |
| Working Temp. | -25...+80°C |
| IP Rating | IP67 |

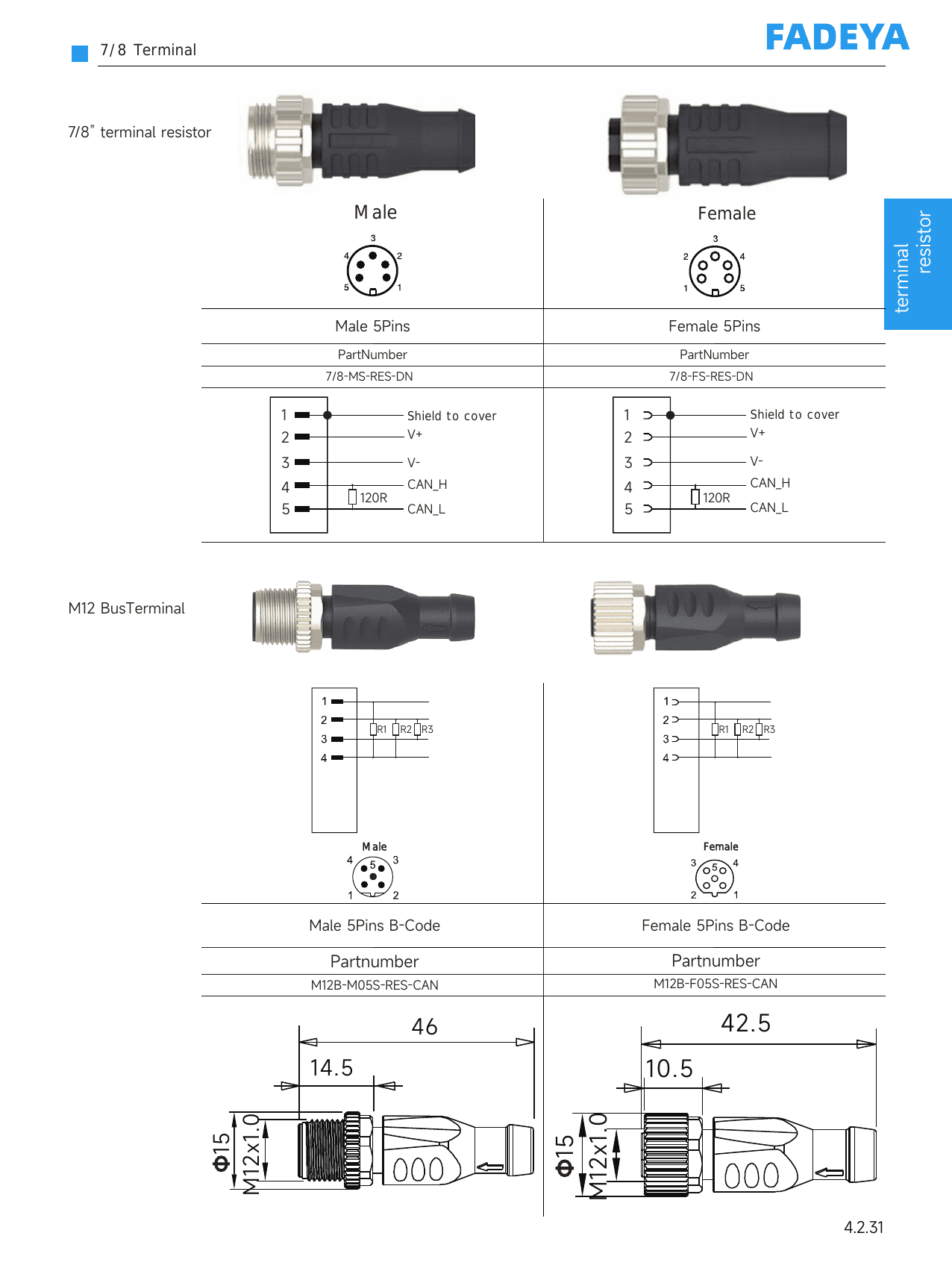

Datasheet
