HMK-003 Axial Power Module — 40A (3-pole)
3 contacts
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HMK-003.1-M (2.5–8mm²)
HMK-003.2-M (6–10mm²)
HMK-003.1-F (2.5–8mm²)
HMK-003.2-F (6–10mm²)

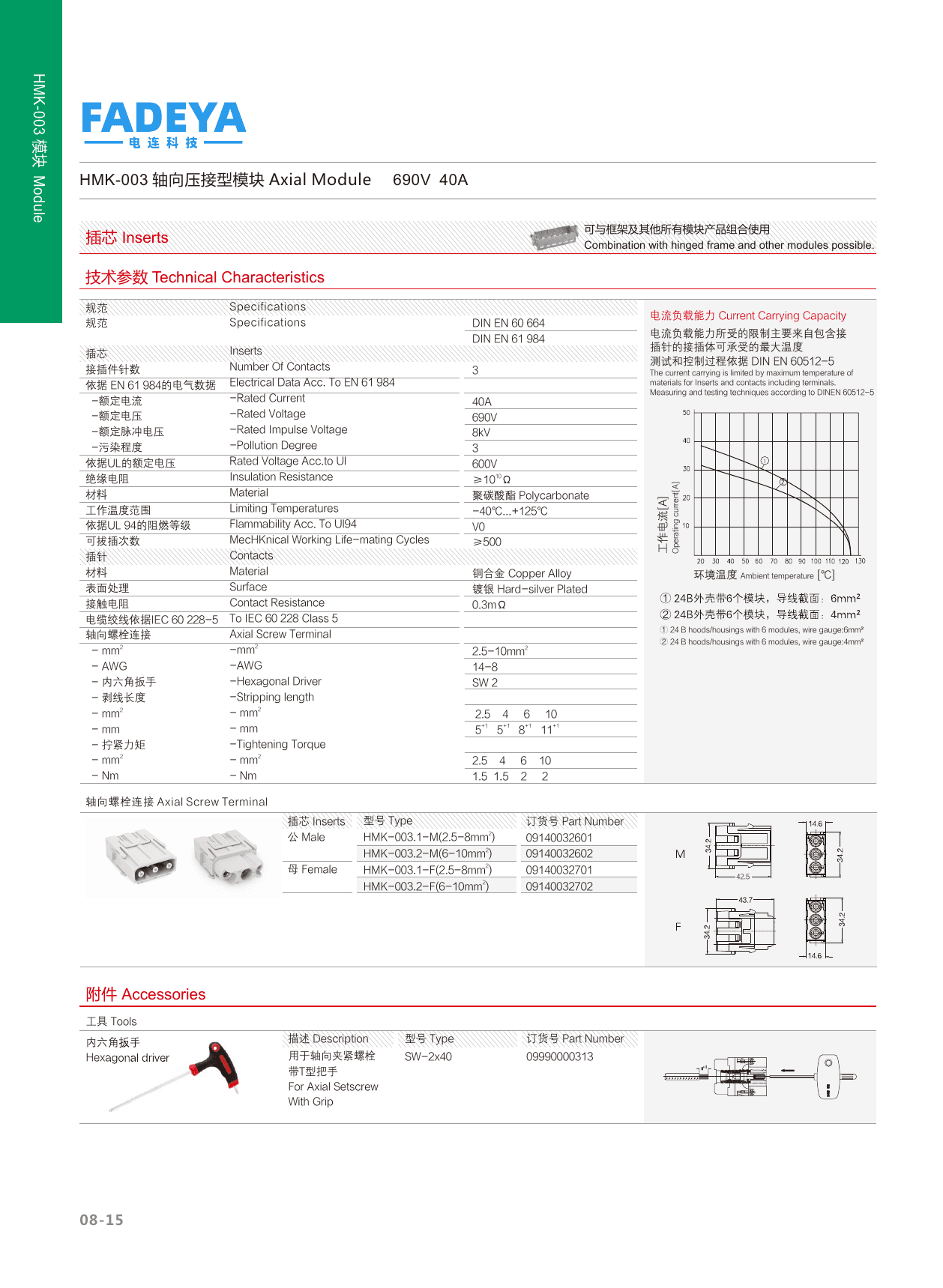

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Pollution Degree | 3 |
| Contact Material | Copper alloy |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Rated Current | 40A |
| Rated Voltage | 690V |
| Rated Impulse Voltage | 8kV |
| Rated Voltage (UL/CSA) | 600V |
| Contact Plating | Hard-silver plated |
| Contact Resistance | 0.3mΩ |
| Wire Gauge | 2.5–10mm² (AWG 14–8) |
| Hex Driver | SW2 |
| Matching Hood/Housing | 24B hood/housing — 6 modules |
| Order Numbers | HMK-003.1-M 09140032601 · HMK-003.2-M 09140032602 · HMK-003.1-F 09140032701 · HMK-003.2-F 09140032702 |
