Han-Modular Coax / EMC ModulesCrimp
EMC-001 Coax Module (1-pole + shield, D 75Ω / E 50Ω)
1 + shielding
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
EMC-001-MC
EMC-001-FC
EMC-001-MC/E
EMC-001-FC/E

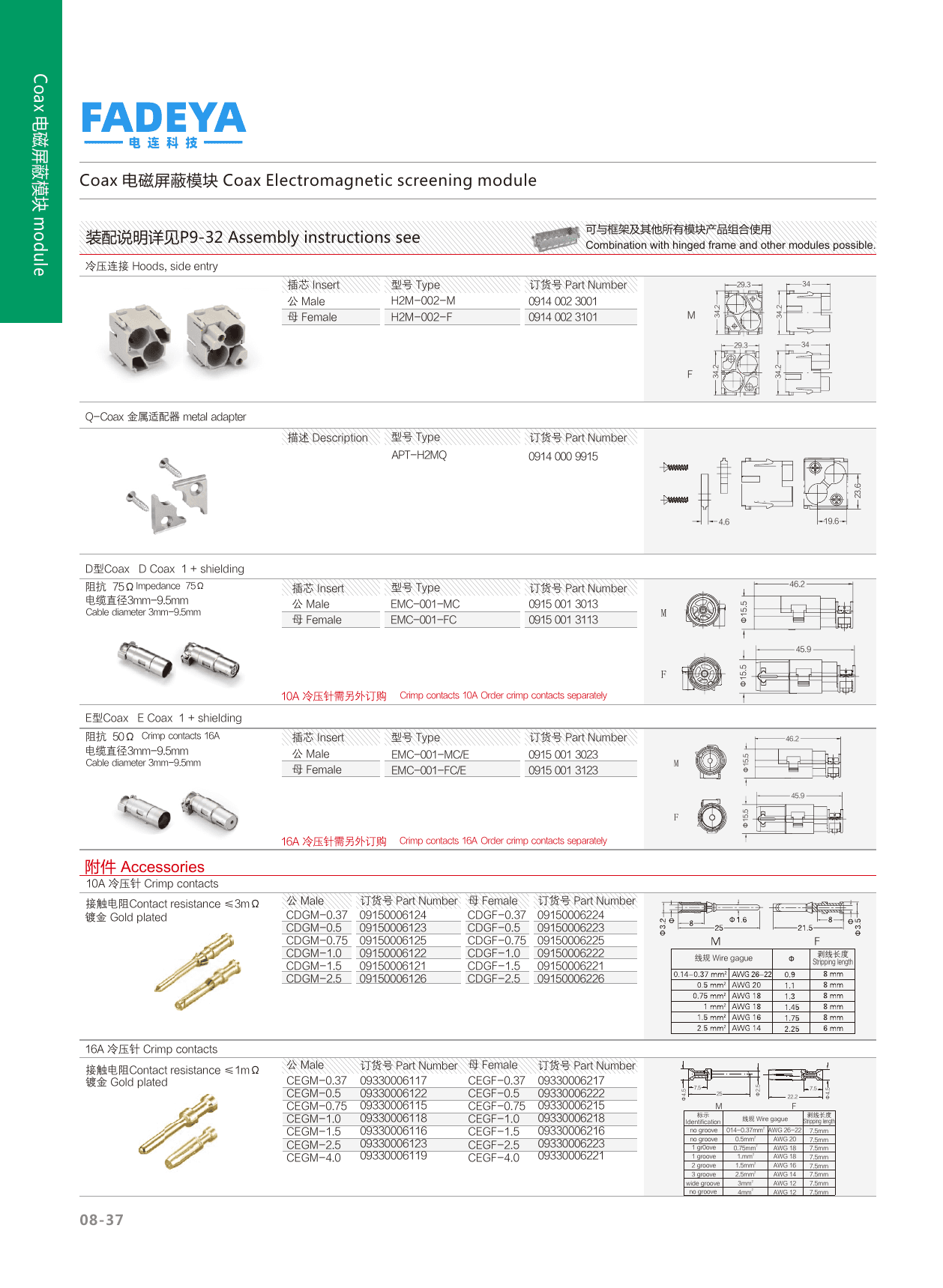

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | D-type 10A · E-type 16A |
| Rated Voltage | 50V |
| Rated Impulse Voltage | 0.8kV |
| Pollution Degree | 3 |
| Impedance | D-Coax 75Ω · E-Coax 50Ω |
| Contact Plating | Hard-gold plated |
| Contact Resistance | Outer conductor ≤4mΩ · D contacts ≤3mΩ · E contacts ≤1mΩ |
| Outer Conductor | Zinc alloy, nickel-plated |
| Insulator | Polycarbonate |
| Cable Diameter | 3–9.5mm |
| Wire Gauge | D (10A) 0.14–2.5mm² (AWG 26–14) · E (16A) 0.14–4mm² (AWG 26–12) |
| Crimp Contacts | CDGM/CDGF (D 10A) · CEGM/CEGF (E 16A) — ordered separately |
| Transmission | Up to 2.5 GHz (E-type with RG213 / S21 cable); suits Ethernet Cat 5e, PROFIBUS |
| Housing Material | Polycarbonate (PC) |
| Temperature Range | -40°C ... +85°C |
| Flammability | UL94 V0 |
| Mating Cycles | ≥500 |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Order Numbers | EMC-001-MC 0915 001 3013 · EMC-001-FC 0915 001 3113 · EMC-001-MC/E 0915 001 3023 · EMC-001-FC/E 0915 001 3123 |
Datasheet
