HC Plastic Hoods & Housings — Side & Top Entry, Bulkhead & Surface Mount (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HC.P-SE-2B-PG16
HC.P-TE-2B-M25
HC.P-TE-2B-PG16
HC.P-TE-2B-PG21
HC.P-TE-2B-PAFS18
HC.P-BK-1L-SE
HC.P-SF-1L-PG16
HC.P-BK-1L

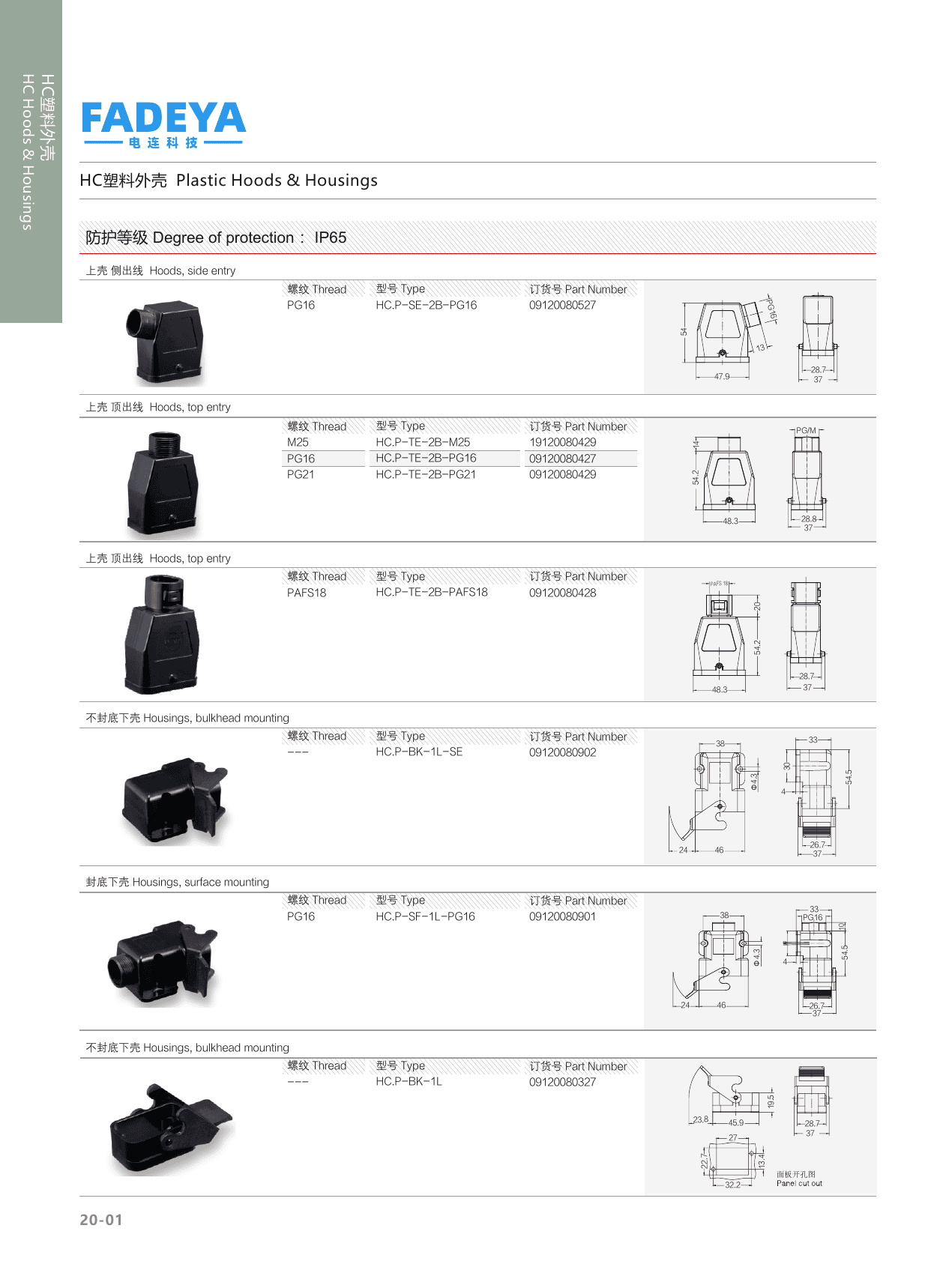

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | HC (single lever) |
| Material | Polycarbonate (PC) |
| Colour | Black |
| Locking Element | Plastic spring lever (PA) |
| Flammability | UL94 V0 |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | side-entry hood, top-entry hood, bulkhead housing, surface-mount housing |
| Locking | 1 lever (1L) |
| Threads | M25 / PG16 / PG21 / PAFS18 |
