HC Plastic Cable-to-Cable Housings, Protection Covers & Cable Glands (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HC.P-CCT-1L-M25
HC.P-CCT-1L-PG16
HC.P-CCT-1L-PAFS18
HC.P-CV-2B/1
HC.P-CV-2B/2
WNAPC-M25B(D6.5-9.5)
WNAPC-M25B(D10.5-14)
WNAPC-M25B(D14-17)
WNAPC-PG16B(D11.5-15.5)
WNAPC-PG21B(D14-18)
WNAPC-PG21B(D17-20.5)
WNAPC-PG16BS(D6.5-9.5)

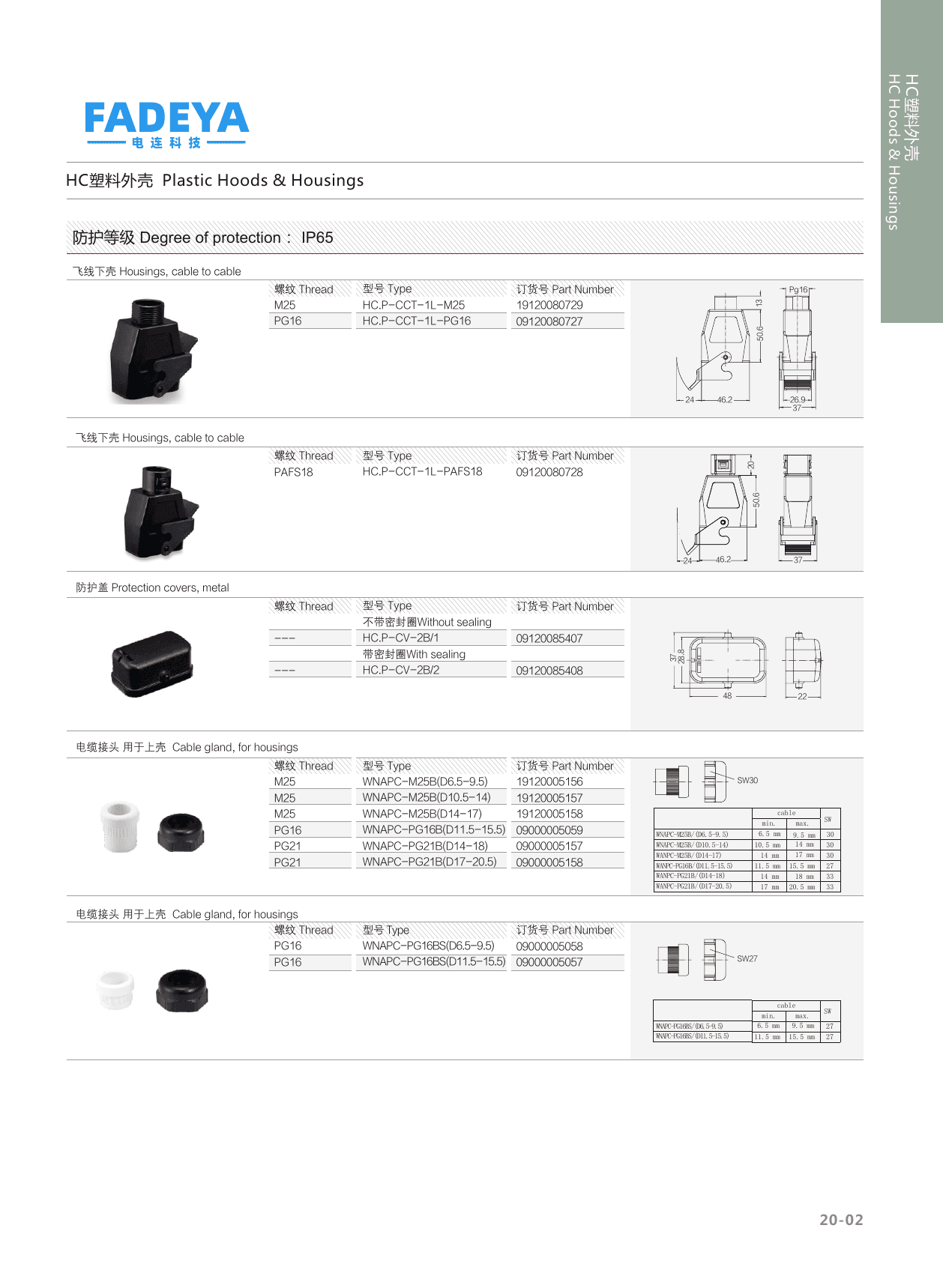

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | HC (single lever) |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | cable-to-cable housing, protection cover (with / without sealing), cable gland |
| Threads | M25 / PG16 / PG21 / PAFS18 |
| Material | Polycarbonate (PC) housings; PA / brass cable glands |
| Cable Range | 6.5 ... 20.5 mm |
