Hoods & Housings HC
HC Metal Hoods & Housings — Epoxy Powder-Coated · Standard & High Construction (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HC-SE-2B-M25
HC-SEH-2B-M25
HC-TEH-2B-M25
HC-SEHS-2B-M25
HC-TEHS-2B-M25
HC-BK-1L/S

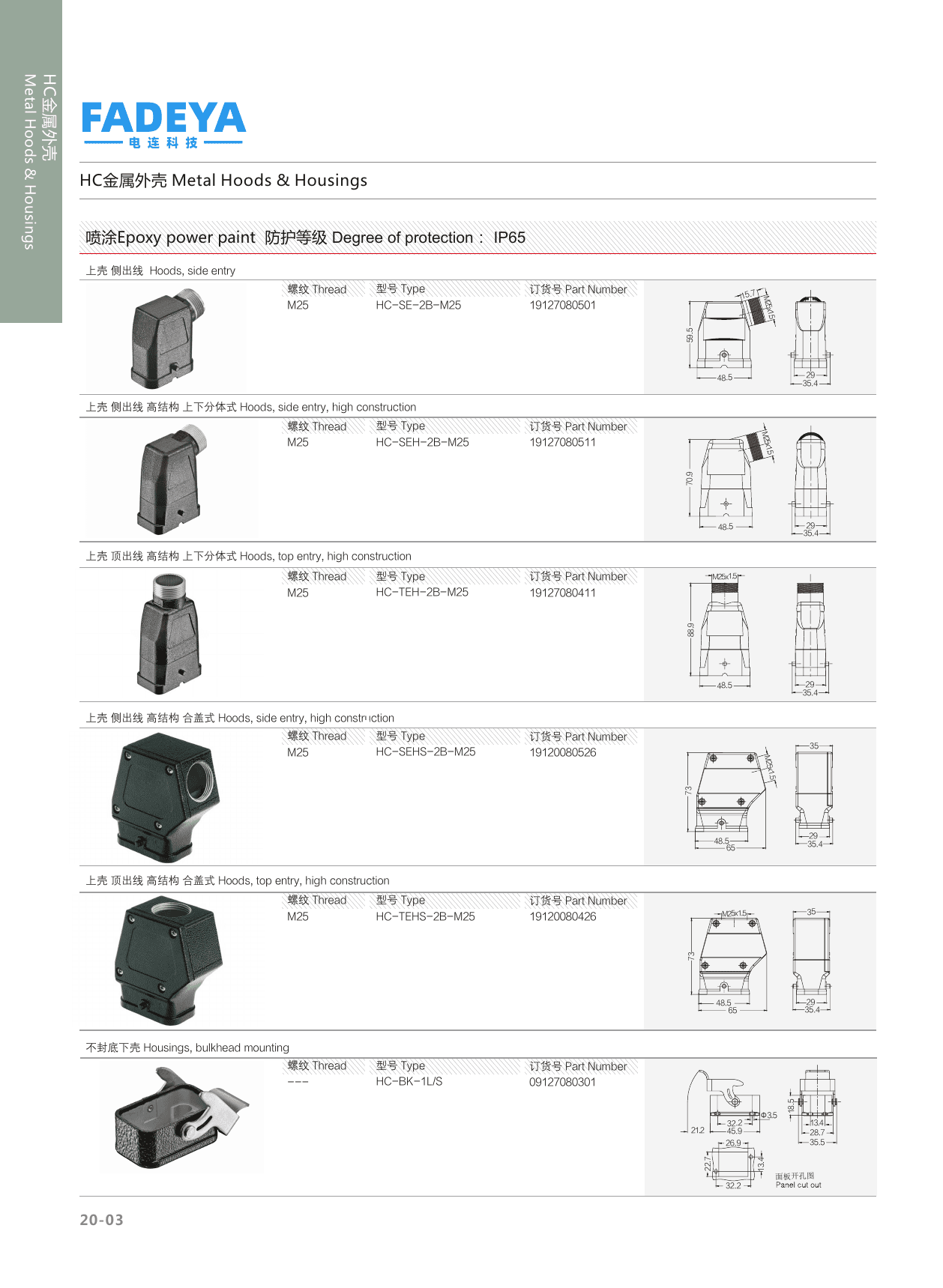

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | HC (single lever) |
| Material | Zinc die-cast |
| Finish | Epoxy powder paint |
| Colour | Grey |
| Locking Element | Metal spring lever (galvanized / nickel-plated steel) |
| Temperature Range | -40°C ... +125°C |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | side-entry hood (standard / high-construction split / high-construction one-piece), top-entry hood (high-construction split / one-piece), bulkhead housing |
| Locking | 1 lever (1L) |
| Threads | M25 |
