Han Q InsertsCrimp
HQ-008/0 Compact Inserts
8 pin + PE
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
HQ-008/0-MC
HQ-008/0-FC

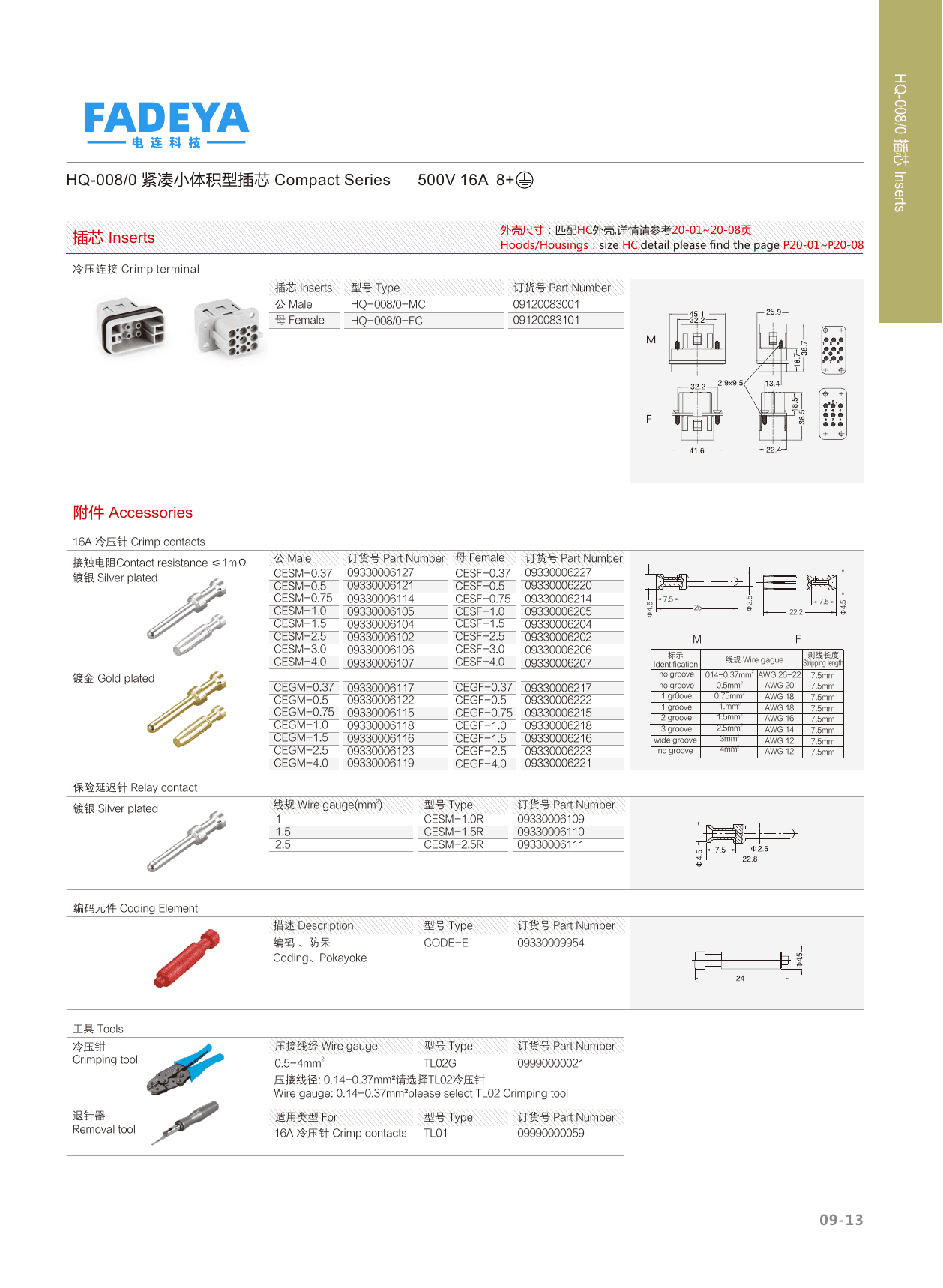

Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Rated Current | 16A |
| Rated Voltage | 500V |
| Rated Impulse Voltage | 6kV |
| Pollution Degree | 3 |
| Rated Voltage (PD2) | 16A 400/690V 6kV (PD2) · 16A 230/400V 4kV (PD3) · with mounted metal hood |
| Rated Voltage (UL/CSA) | 600V |
| Contact Material | Copper alloy |
| Contact Plating | Hard-silver or hard-gold plated |
| Contact Resistance | ≤1mΩ |
| Insulation Resistance | ≥10¹⁰ Ω |
| Housing Material | Thermoplastic / Polyamide (PA), NBR seal (plastic hood) — Stainless steel, NBR seal (metal hood) |
| Temperature Range | -40°C ... +125°C |
| Flammability | UL94 V0 |
| Protection | IP65 |
| Mating Cycles | ≥500 |
| Wire Gauge | 0.14–2.5mm² (up to 4mm² in some configurations) AWG 26–12 |
| Termination | Crimp |
| Standards | DIN EN 60664 / DIN EN 61984 |
| Matching Hood/Housing | HC hood/housing |
| Order Numbers | HQ-008/0-MC 09120083001 · HQ-008/0-FC 09120083101 |
| Crimp Contacts | 16A contacts: CESM/CESF (silver), CEGM/CEGF (gold), 0.37–4.0mm²; relay contacts CESM-1.0R / 1.5R / 2.5R |
| Accessory | Coding/Pokayoke CODE-E (09330009954) · Crimp tool TL02G (09990000021) · Removal tool TL01 (09990000059) |
