Corrugated Robot Hose
Standard Flexible Robot Hose
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RG-PUR-17B
FA-RG-PUR-20B
FA-RG-PUR-23B
FA-RG-PUR-28B
FA-RG-PUR-36B
FA-RG-PUR-48B
FA-RG-PUR-56B
FA-RG-PUR-70B
FA-RG-PUR-95B
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Polyurethane (PUR) |
| Part Code | FA-RG-PUR-B |
| Working Temperature | -40 °C to +105 °C |
| Color | Black (blue / custom optional) |
| Size Range | ID 17–95 mm · OD 21–106 mm |
| Bend Radius | 40–150 mm (static) |
| Features | High resilience, bend / abrasion / torsion resistant |
| Certification | CE · RoHS |

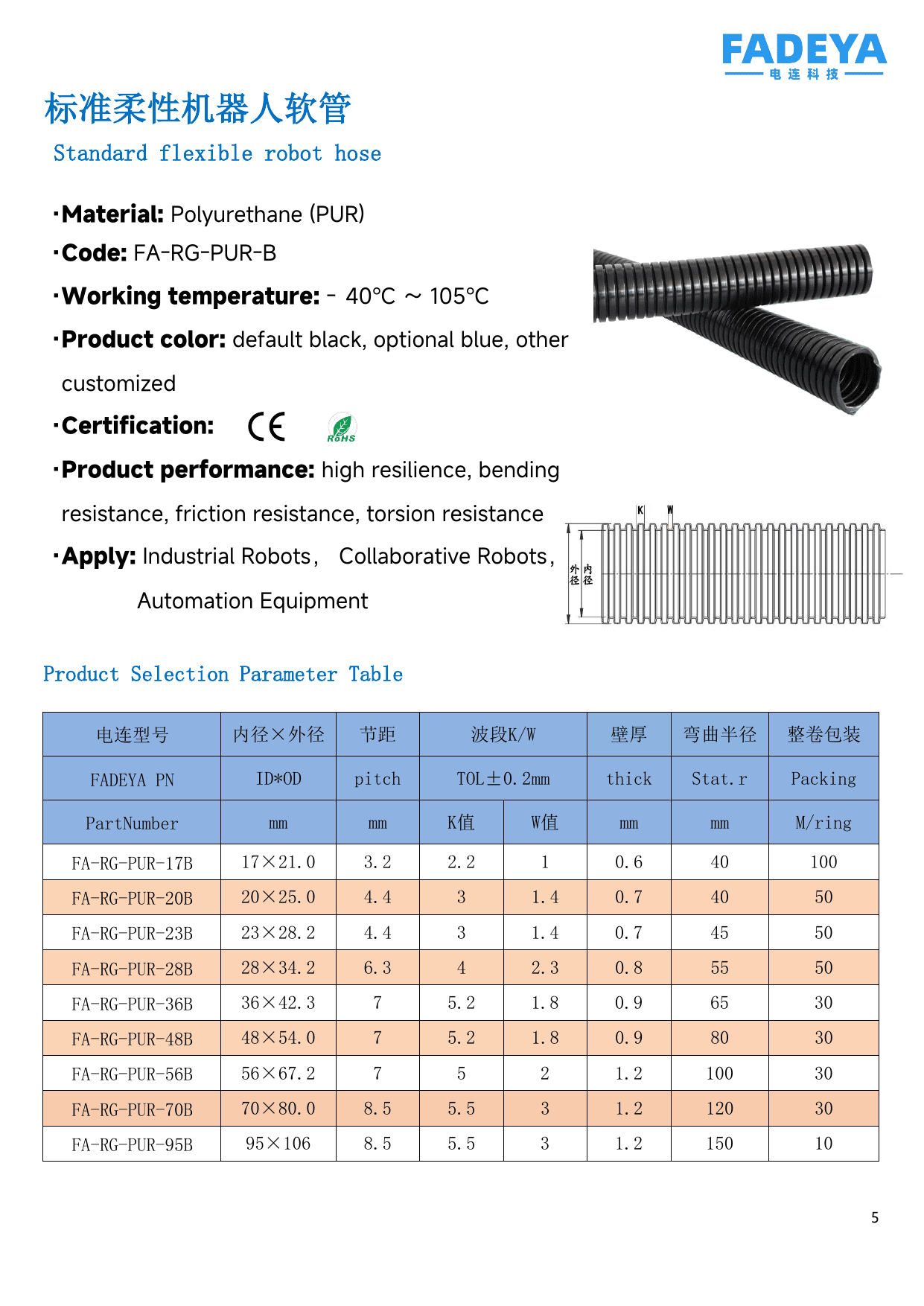

Datasheet
