Corrugated Robot Hose
Friction-Resistant Robot Hose
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-PA12-17B
FA-PA12-20B
FA-PA12-23B
FA-PA12-28B
FA-PA12-36B
FA-PA12-48B
FA-PA12-56B
FA-PA12-70B
FA-PA12-95B
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon (PA12) |
| Part Code | FA-PA12-B |
| Working Temperature | -40 °C to +105 °C |
| Color | Black (custom optional) |
| Size Range | ID 17–95 mm · OD 21–106 mm |
| Bend Radius | 50–160 mm (static) |
| Features | High friction resistance, high hardness, impact resistant |
| Certification | CE · RoHS |
Cross-reference / Compatible with
- LEONI (now BizLink) M17-BU (proflex Ø17 blue)→ FA-PA12-17B
- LEONI (now BizLink) M23-BU (proflex Ø23 blue)→ FA-PA12-23B
- LEONI (now BizLink) M36-BU (proflex Ø36 blue)→ FA-PA12-36B
- LEONI (now BizLink) CCH0012 (proflex Ø48 blue)→ FA-PA12-48B
- LEONI (now BizLink) CCH0013 (proflex Ø70 blue)→ FA-PA12-70B
- LEONI (now BizLink) M95-BU (proflex Ø95 blue)→ FA-PA12-95B

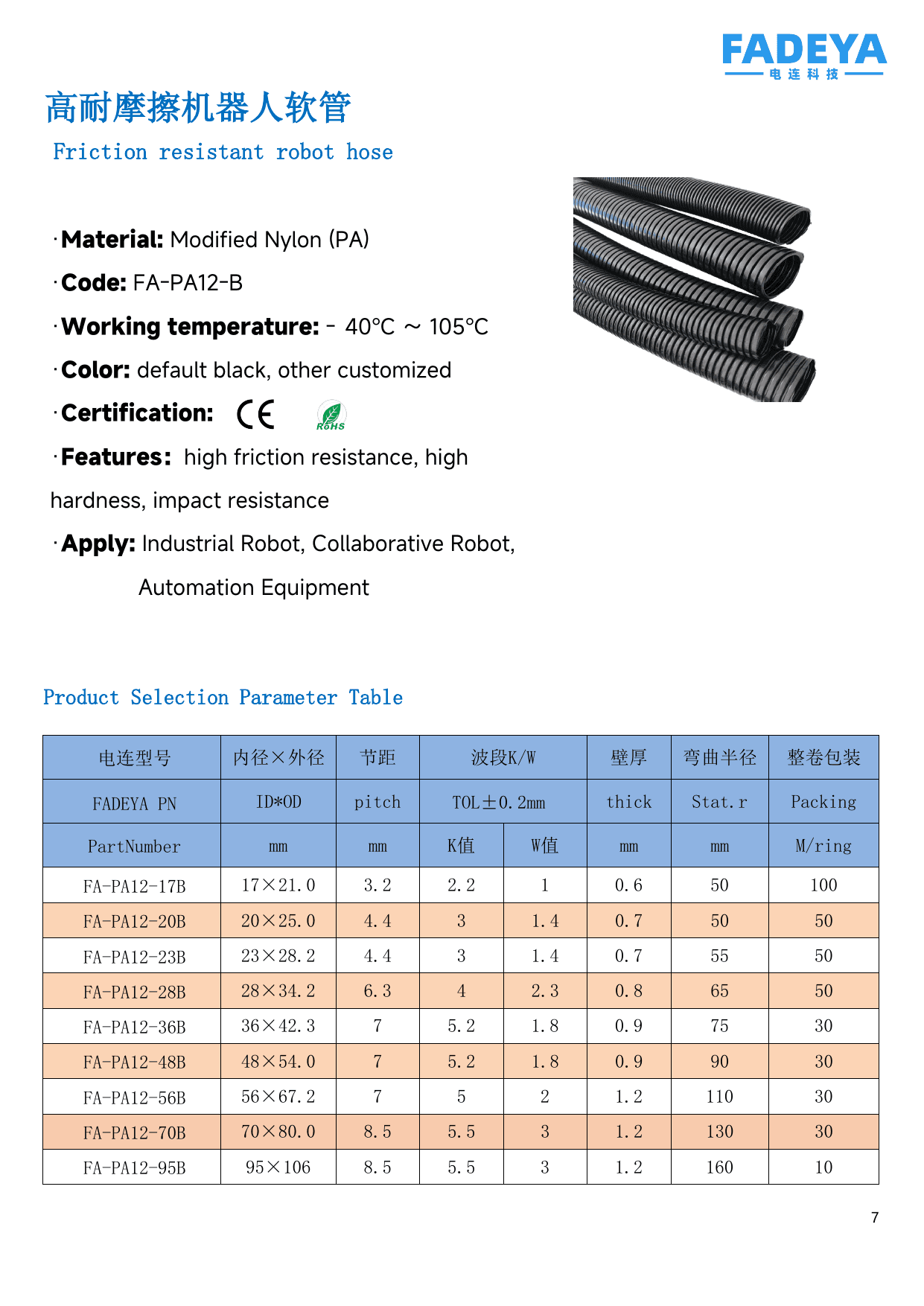

Datasheet
