Corrugated Robot Hose
High-Flexibility Robot Hose
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RG-PUR-17R
FA-RG-PUR-20R
FA-RG-PUR-23R
FA-RG-PUR-28R
FA-RG-PUR-36R
FA-RG-PUR-48R
FA-RG-PUR-56R
FA-RG-PUR-70R
FA-RG-PUR-95R
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Polyurethane (PUR) |
| Part Code | FA-RG-PUR-R |
| Working Temperature | -40 °C to +105 °C |
| Color | Black (blue / custom optional) |
| Size Range | ID 17–95 mm · OD 21–106 mm |
| Bend Radius | 30–120 mm (static, tighter than standard) |
| Features | Extra-flexible: high resilience, bend / abrasion / torsion resistant |
| Certification | CE · RoHS |

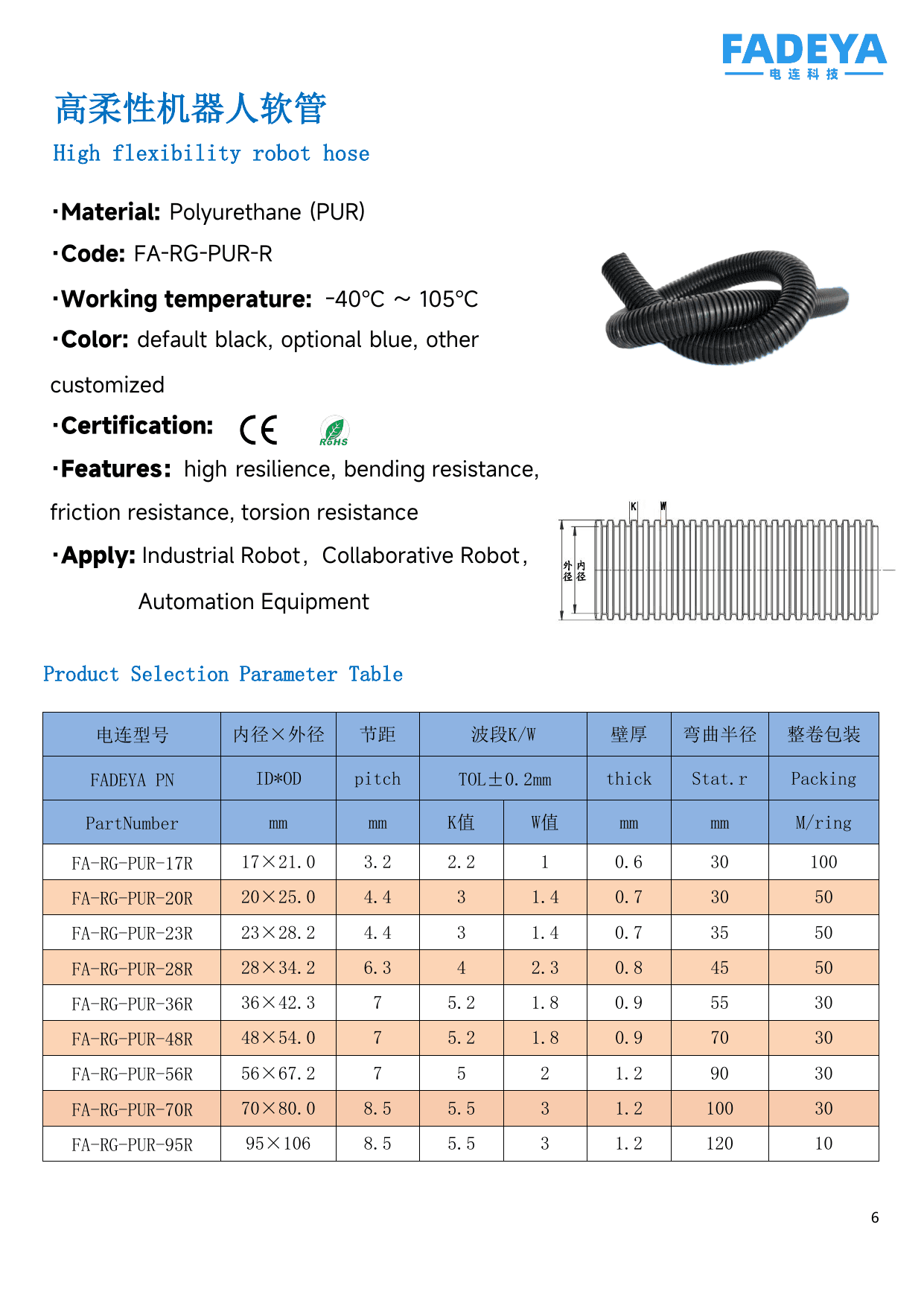

Datasheet
