Sleeves & Clamps
Flared Sliding Sleeve
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGDX-36A
FA-RGDX-48A
FA-RGDX-56A
FA-RGDX-70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon |
| Part Code | FA-RGDX-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose Ø36–70 mm |
| Features | Used with a fixed bracket so the hose can freely expand and slide; high rigidity, friction- and corrosion-resistant |
| Certification | CE · RoHS |

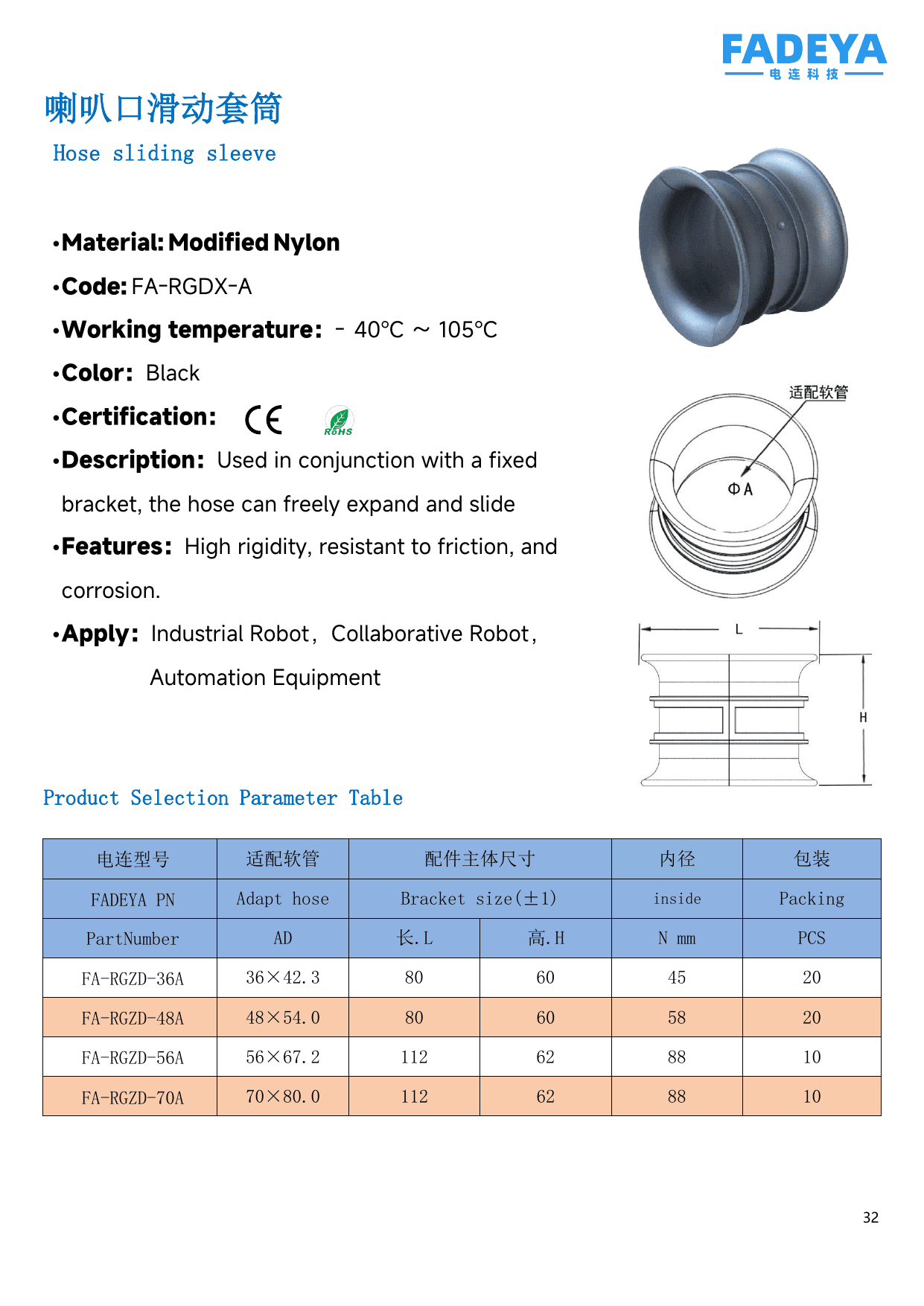

Datasheet
