Sleeves & Clamps
Front-End Hose Clamp
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGWX-36A
FA-RGWX-48A
FA-RGWX-56A
FA-RGWX-70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon |
| Part Code | FA-RGWX-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose Ø36–70 mm |
| Features | Supports the front-end sleeve, splitter and integrated mounting bracket; high rigidity |
| Certification | CE · RoHS |

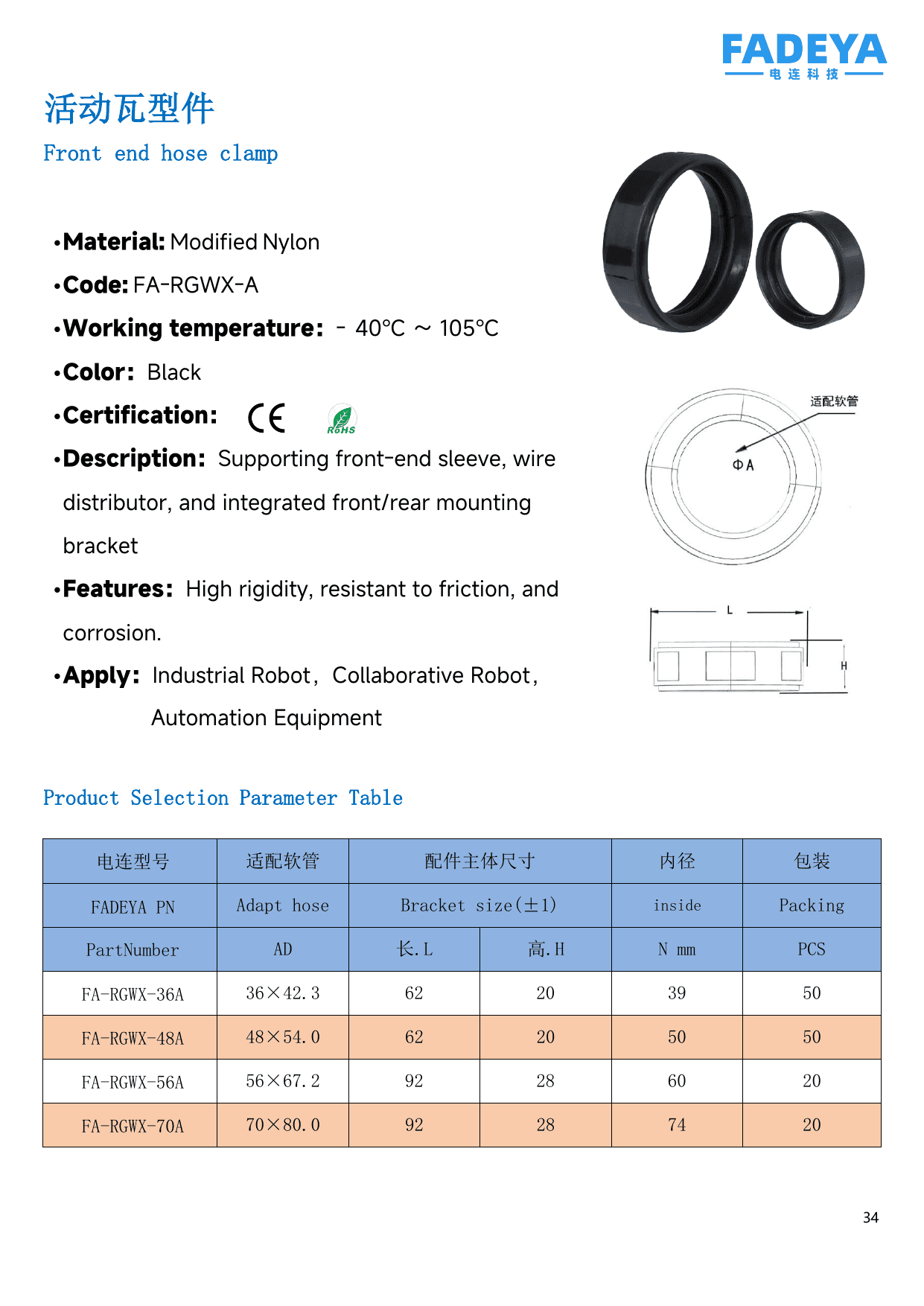

Datasheet
