Sleeves & Clamps
Flared Front-End Sleeve
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGQD-28A
FA-RGQD-36/48A
FA-RGQD-56/70A
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Modified Nylon |
| Part Code | FA-RGQD-A |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Fits Hose | Hose Ø28–70 mm |
| Features | Integrated front/rear mounting assembly for hose positioning and cable routing on 6-axis robots |
| Certification | CE · RoHS |

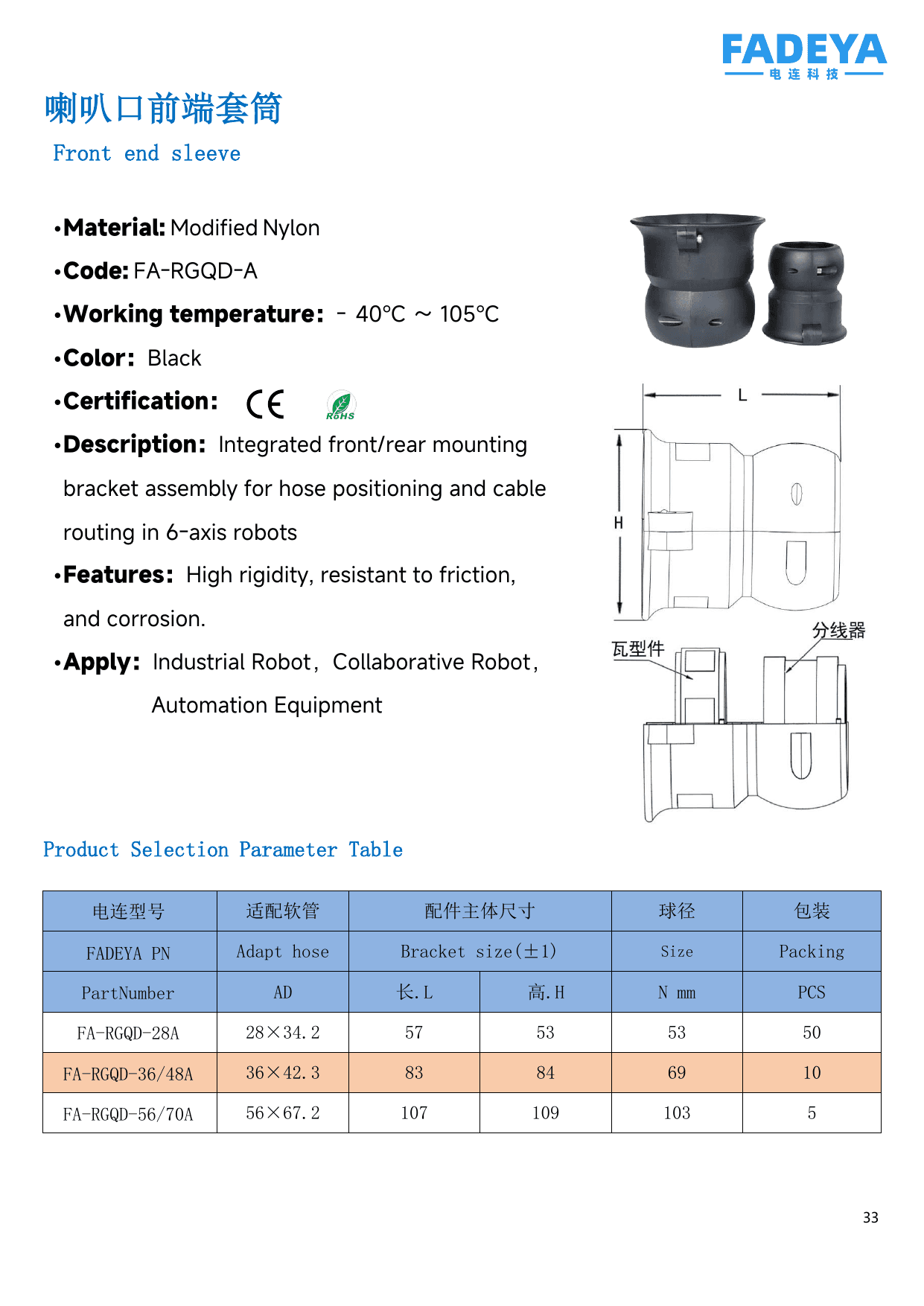

Datasheet
