Cable Glands
Double-Locking Metal Cable Gland — Strain Relief (IP68)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNKS-PG9(4-8)
WNKS-PG11(5-10)
WNKS-PG13.5(6-12)
WNKS-PG16(10-14)
WNKS-PG21(13-18)
WNKS-PG29(18-25)
WNKS-PG36(22-32)
WNKS-PG42(30-38)
WNKS-M16(4-8)
WNKS-M16(5-10)
WNKS-M20(6-12)
WNKS-M25(10-16)
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Nickel-plated brass (body), Nylon PA66 (insert sleeve) |
| Feature | External strain relief via clamping jaws (double locking) |
| Protection | IP68 (with O-ring) |
| Threads | PG9–PG42 / M16–M50 × 1.5 |
| Clamping Range | 4–8 mm up to 30–38 mm |

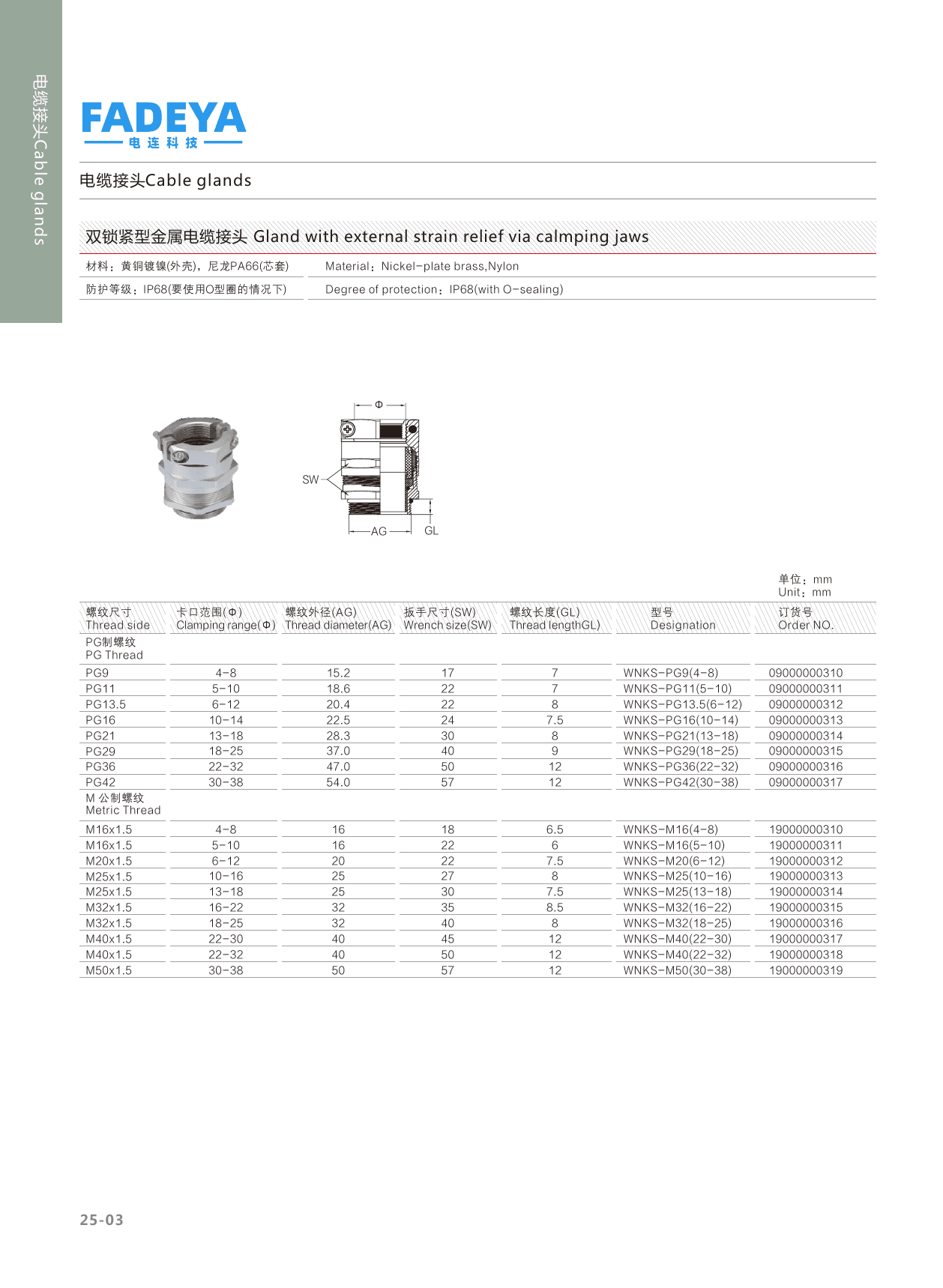

Datasheet
