Cable Glands
Plastic Waterproof Cable Gland — Nylon (Grey / Black, IP68)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNAP-PG7G
WNAP-PG9G
WNAP-PG11G
WNAP-PG13.5G
WNAP-PG16G
WNAP-PG21G
WNAP-PG29G
WNAP-PG36G
WNAP-PG42G
WNAP-PG48G
WNAP-PG7B
WNAP-PG9B
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Nylon |
| Seal | NBR |
| Colours | Grey / Black |
| Protection | IP68 (with O-ring) |
| Temperature Range | Static -40°C … +100°C / Dynamic -20°C … +80°C |
| Threads | PG7–PG48 / M12–M63 × 1.5 |
| Clamping Range | 3–6.5 mm up to 37–44 mm |

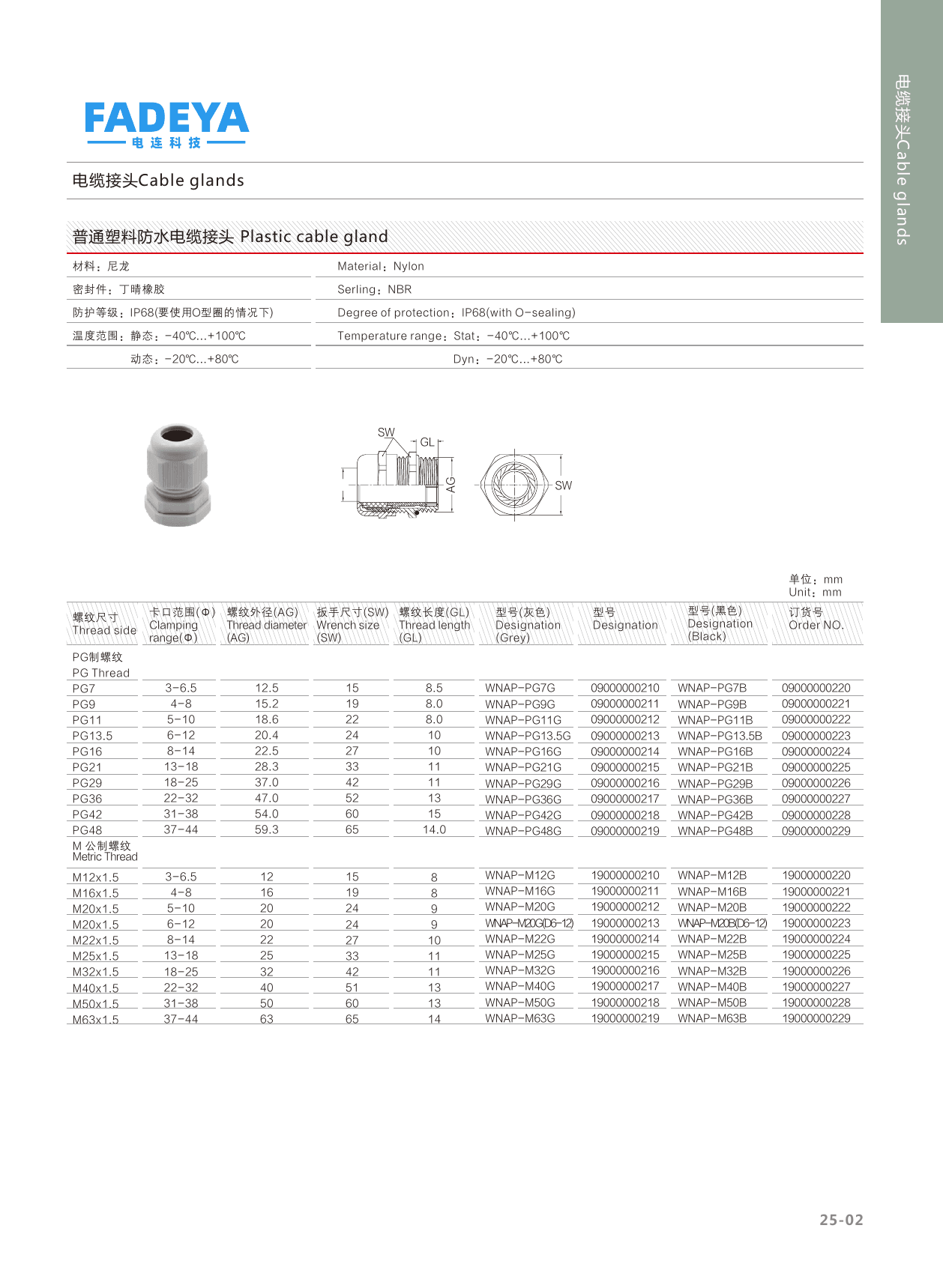

Datasheet
