Cable Glands
Multi-Core Metal Cable Gland (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
WNAM-PG9/(2x3)
WNAM-PG21/(4x6)
WNAM-PG21/(3x7)
WNAM-PG21/(2x6)
WNAM-PG21/(2x7)
WNAM-PG21/(2x8)
WNAM-PG29/(4x9)
WNAM-PG36/(5x9)
WNAM-M16/(2x3)
WNAM-M20/(6x3)
WNAM-M20/(2x5)
WNAM-M25/(2x7)
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Material | Nickel-plated brass |
| Seal | Nylon 66 and NBR |
| Feature | Multi-core seal insert (n × d) for several conductors through one entry |
| Protection | IP65 |
| Temperature Range | -40°C … +100°C, short-term +120°C |
| Threads | PG9–PG36 / M16–M40 × 1.5 |

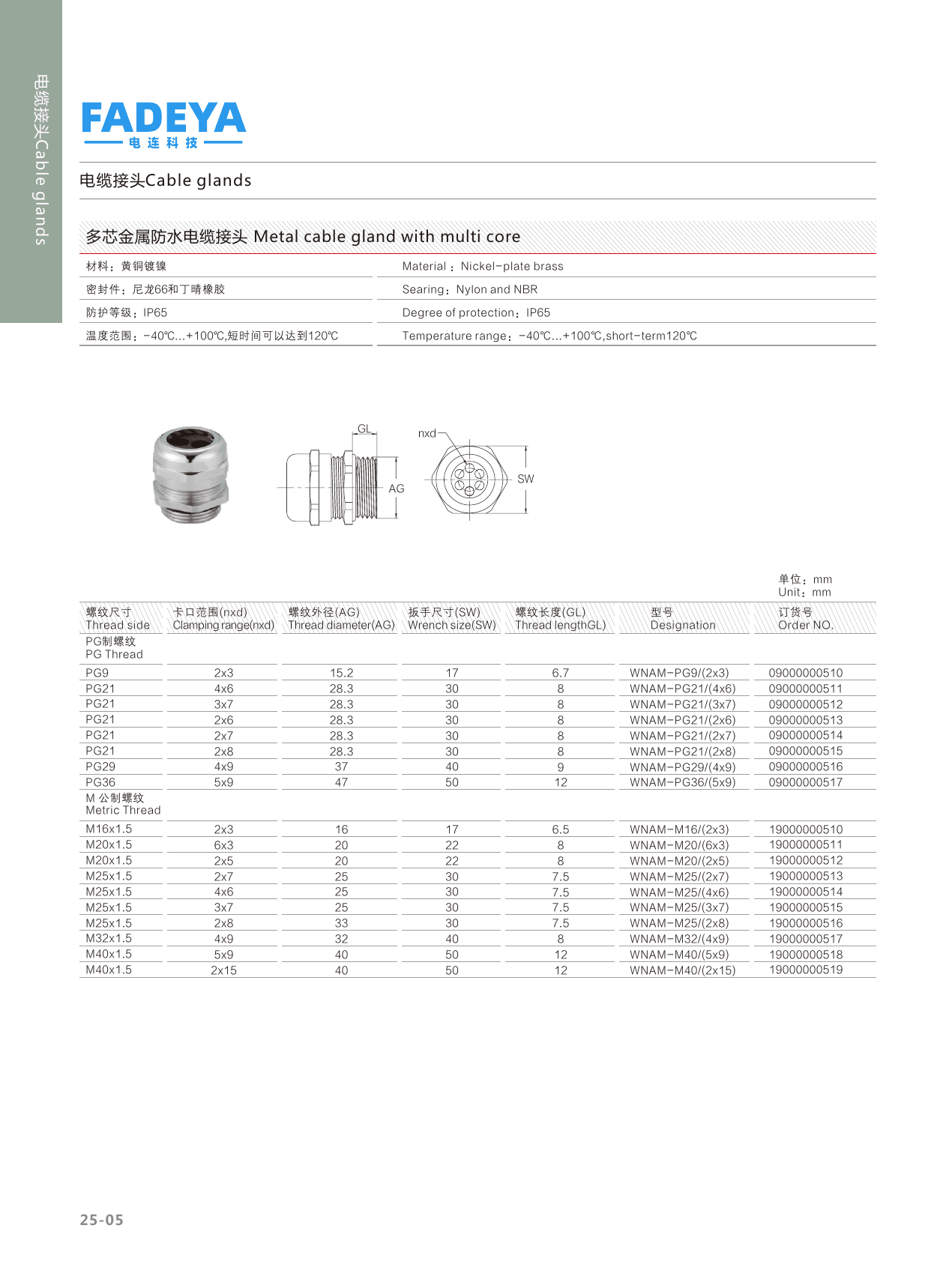

Datasheet
