Hoods & Housings HC
HC Metal Protection Covers & Cable Glands — Chromated (IP65)
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
C.HC-MCV-2B/1
C.HC-MCV-2B/2
WNAMC-M25(D10.5-14)
WNAMC-M25(D14-17)
Each datasheet image is a full catalog page (contact arrangement, panel cut-out, dimensions, order table and parameters). Inserts ship as male (M) or female (F) halves and are ordered separately. Terminal-type suffix: none = screw, C = crimp, S = cage-clamp, Z = quick-lock (push-in), SS = double cage-clamp (two conductors per contact). 16A crimp contacts (CESM/CEGM silver/gold series), crimp tool TL02G and removal tool TL01 are shared accessories listed on the datasheet pages and will be catalogued in the accessories batch.
Technical Parameters
| Protection | IP65 |
| Compatible Insert Size | HC (single lever) |
| Standards | DIN EN 60529 |
| Seal | NBR |
| Housing Types | metal protection cover (with / without sealing), metal cable gland |
| Threads | M25 |
| Material | Zinc die-cast |
| Finish | Chromated |
| Cable Range | 10.5 ... 17 mm |

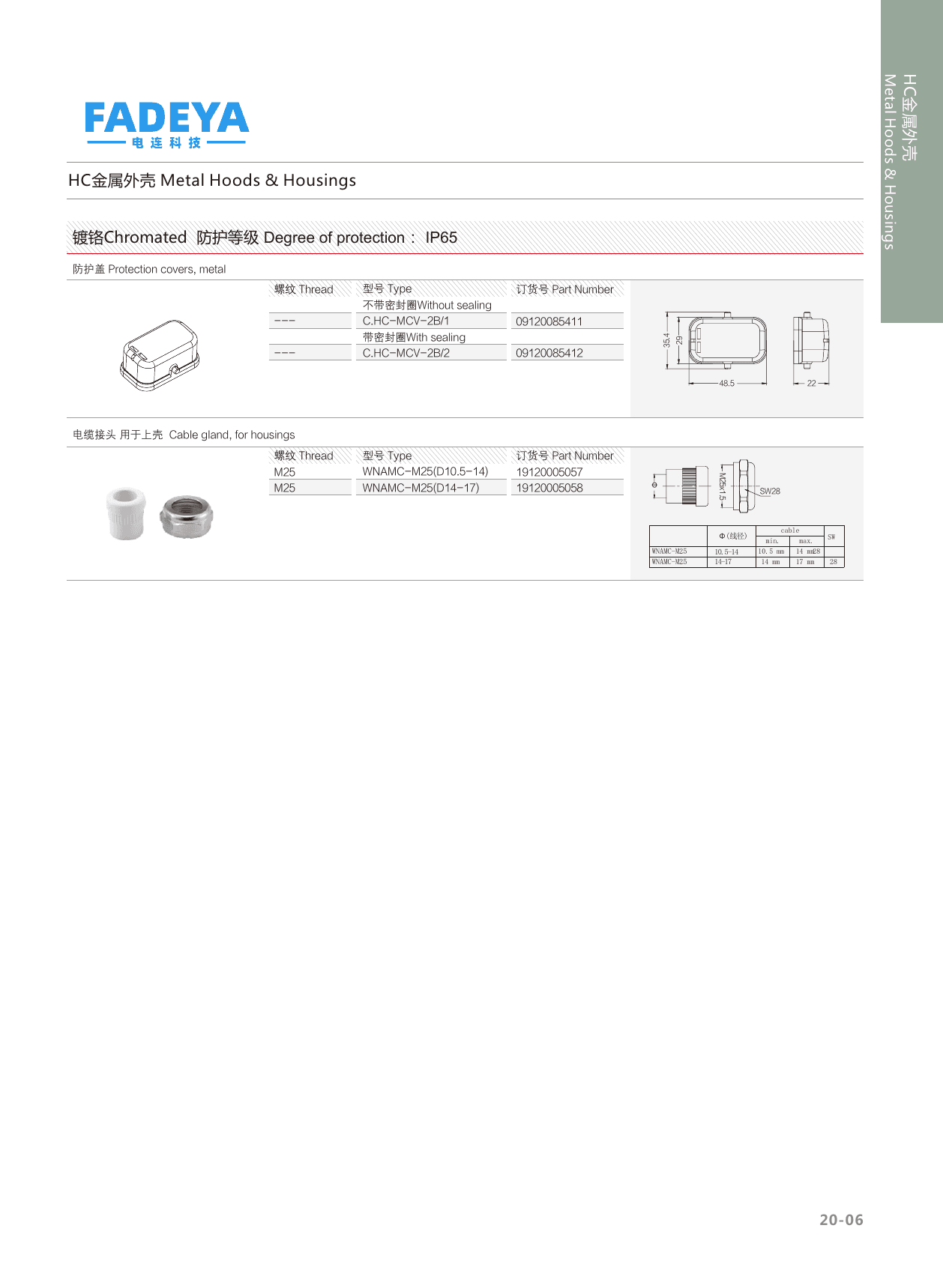

Datasheet
