Trunk Cables, Covers & AccessoriesM12 mating
M12 Pre-Molded Cordsets (for M8 8/10-Port Boxes, 12-pin)
12-pin M12 female pre-molded cordsets (straight / angle) matching M8 8- and 10-port boxes.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12-F12S-8P-3.0PVC/GY
M12-F12A-8P-3.0PVC/GY
M12-F12S-8P-3.0PUR/GY
M12-F12A-8P-3.0PUR/GY
M12-F12S-10P-3.0PVC/GY
M12-F12A-10P-3.0PVC/GY
M12-F12S-10P-3.0PUR/GY
M12-F12A-10P-3.0PUR/GY
Standard cable length 5.0 m, customizable in 0.5 m increments. Channel codes: 1CN/1CW single, 2CN/2CW double (M8); 1C single, 2C double (M12). Trunk codes: 5.0PVC/PUR integrated cable, M12/M23 plug, PW bare PCB header, TB screw-terminal hood. Colors: GY/GR Gray. Reference pages 03-06 cover the product overview, model numbering and mounting dimensions.
Technical Parameters
| IP Rating | IP67 |
| Std. Cable Length | varies (see datasheet) |

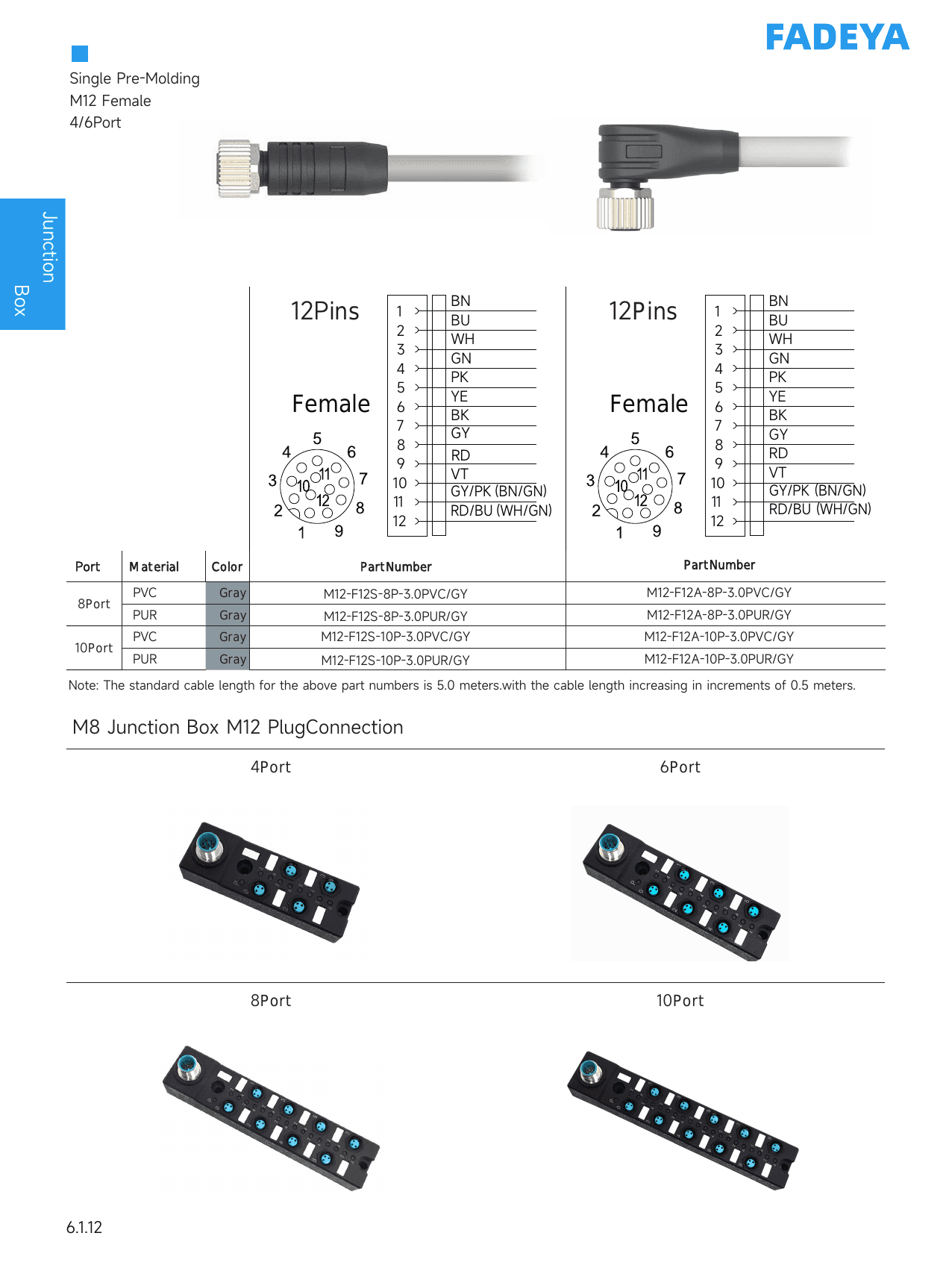

Datasheet
