Trunk Cables, Covers & AccessoriesTerminal-box hood

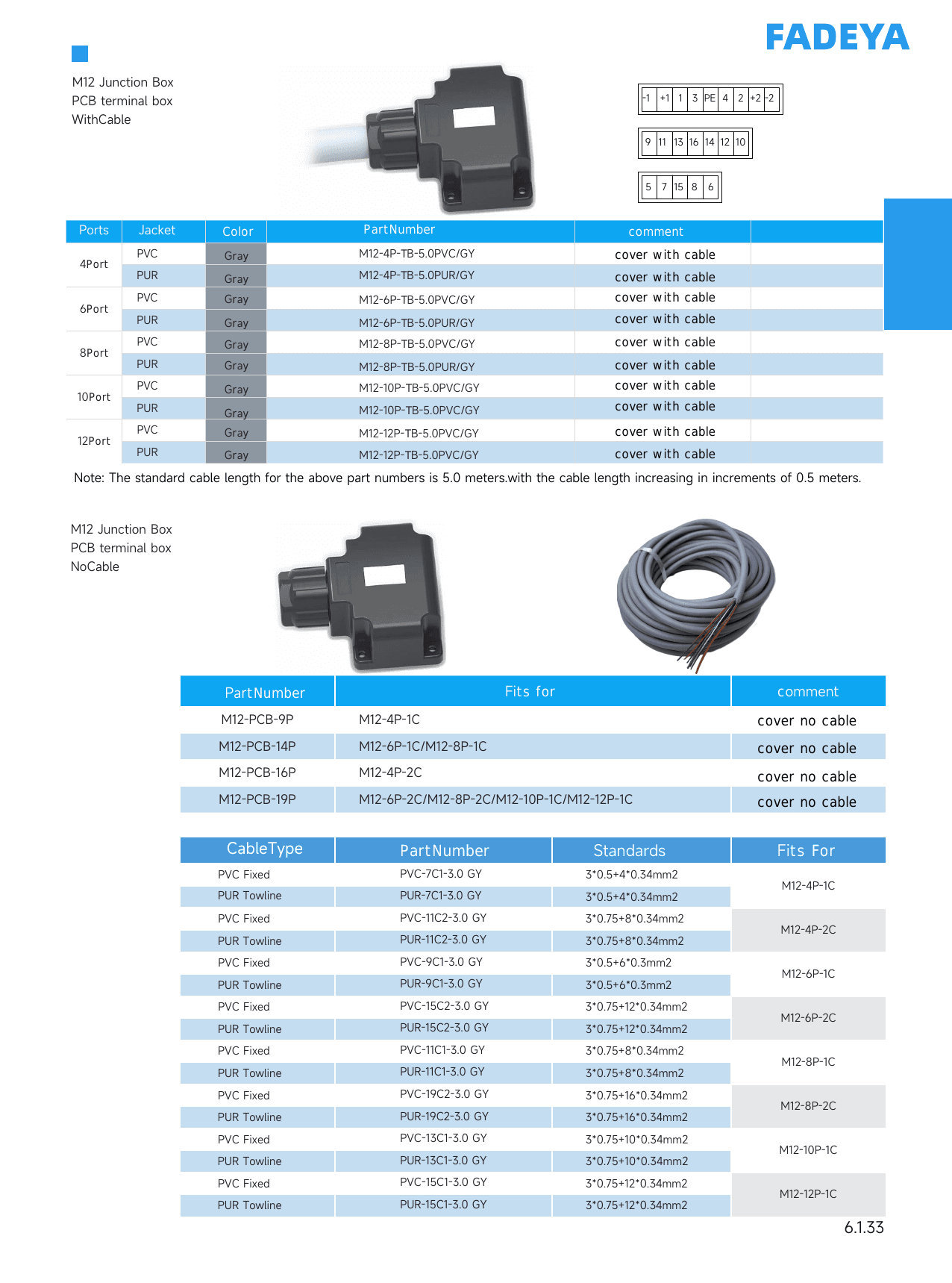

M12 Terminal-Box Hoods, PCB Covers & Trunk Cables
Pre-cabled TB hoods (4-12 port), no-cable PCB covers (M12-PCB-9P/14P/16P/19P), and matching bulk trunk cables.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M12-4P-TB-5.0PVC/GY
M12-4P-TB-5.0PUR/GY
M12-6P-TB-5.0PVC/GY
M12-6P-TB-5.0PUR/GY
M12-8P-TB-5.0PVC/GY
M12-8P-TB-5.0PUR/GY
M12-10P-TB-5.0PVC/GY
M12-10P-TB-5.0PUR/GY
M12-12P-TB-5.0PVC/GY
M12-12P-TB-5.0PUR/GY
M12-PCB-9P
M12-PCB-14P
Standard cable length 5.0 m, customizable in 0.5 m increments. Channel codes: 1CN/1CW single, 2CN/2CW double (M8); 1C single, 2C double (M12). Trunk codes: 5.0PVC/PUR integrated cable, M12/M23 plug, PW bare PCB header, TB screw-terminal hood. Colors: GY/GR Gray. Reference pages 03-06 cover the product overview, model numbering and mounting dimensions.
Technical Parameters
| IP Rating | IP67 |
| Std. Cable Length | varies (see datasheet) |
Datasheet
