M8 Terminal-Box Hoods & Trunk Cables
Pre-cabled terminal-box hoods (TB) for 8/12/16-port M8 boxes, a no-cable replacement cover, and bulk trunk cable.
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
M8-8P-TB-5.0PVC/GY
M8-8P-TB-5.0PUR/GY
M8-12P-TB-5.0PVC/GY
M8-12P-TB-5.0PUR/GY
M8-16P-TB-5.0PVC/GY
M8-16P-TB-5.0PUR/GY
M8-PCB-CV
PVC-10C-3.0/GY
PUR-10C-3.0/GY
PVC-14C-3.0/GY
PUR-14C-3.0/GY
PVC-18C-3.0/GY
Standard cable length 5.0 m, customizable in 0.5 m increments. Channel codes: 1CN/1CW single, 2CN/2CW double (M8); 1C single, 2C double (M12). Trunk codes: 5.0PVC/PUR integrated cable, M12/M23 plug, PW bare PCB header, TB screw-terminal hood. Colors: GY/GR Gray. Reference pages 03-06 cover the product overview, model numbering and mounting dimensions.
Technical Parameters
| IP Rating | IP67 |
| Std. Cable Length | varies (see datasheet) |

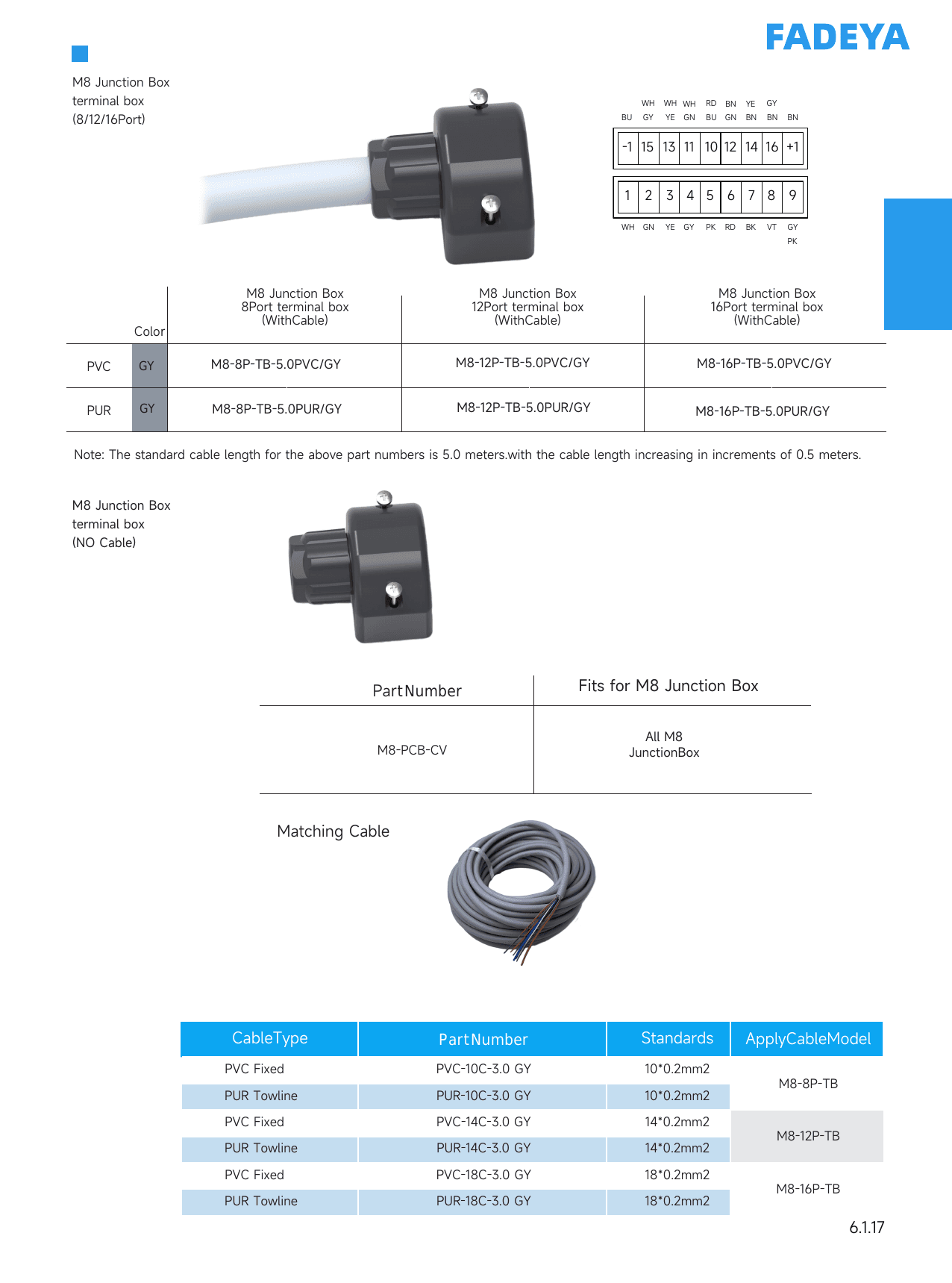

Datasheet
