Industrial 6-Axis Flange Connector
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGWQP-125
FA-RGWQP-140
FA-RGWQP-160
FA-RGWQP-180
FA-RGWQP-190
FA-RGWQP-200
FA-RGWQP-220
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Metal, powder-coated |
| Part Code | FA-RGWQP |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Flange Bore | Ø125–220 mm |
| Mating Block | FA-RGDK-27 / FA-RGDK-34 |
| Features | Robot 6-axis connecting flange ("tennis racket") for seamless hose integration with end effectors; corrosion-resistant, customizable |
| Certification | CE · RoHS |

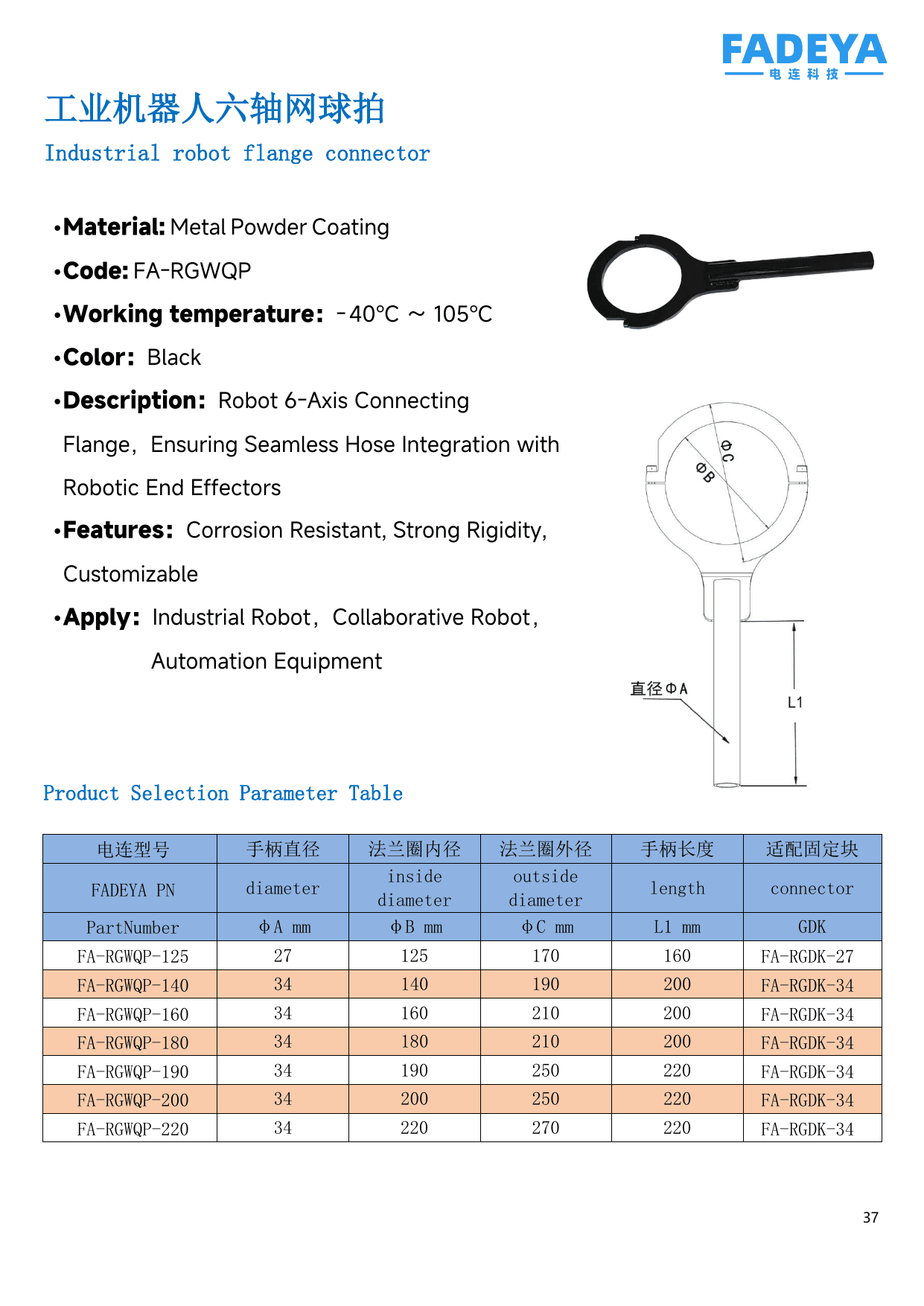

Datasheet
