Flange Connectors & Mounts
Collaborative 6-Axis Flange Connector
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGWQP-50
FA-RGWQP-63
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Metal, powder-coated |
| Part Code | FA-RGWQP |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Bore | Ø50 / Ø63 mm |
| Hole Pattern | Pitch 50×30, M6 / M8 |
| Features | Cobot 6-axis connecting flange for seamless hose integration with end effectors; corrosion-resistant, customizable |
| Certification | CE · RoHS |

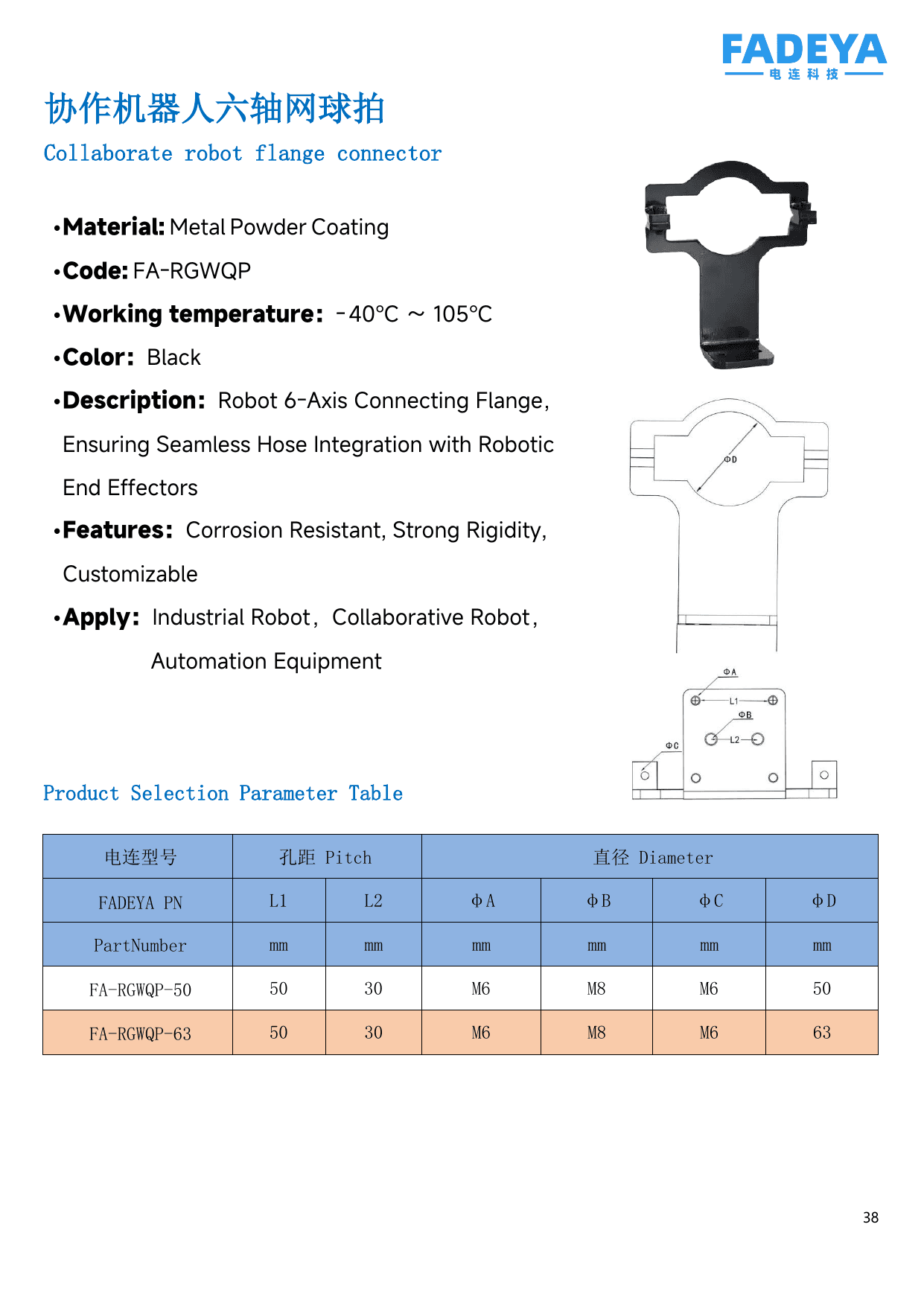

Datasheet
