Flange Connectors & Mounts
Six-Axis Fixed-Block Connector
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGDK-27
FA-RGDK-34
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Aluminum, powder-coated |
| Part Code | FA-RGDK |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Bore | Ø27 / Ø34 mm |
| Hole Pattern | Pitch 30×50, M6/M8 |
| Features | Links the flange ("tennis racket") connector to the front-end mounting bracket; corrosion-resistant, lightweight |
| Certification | CE · RoHS |

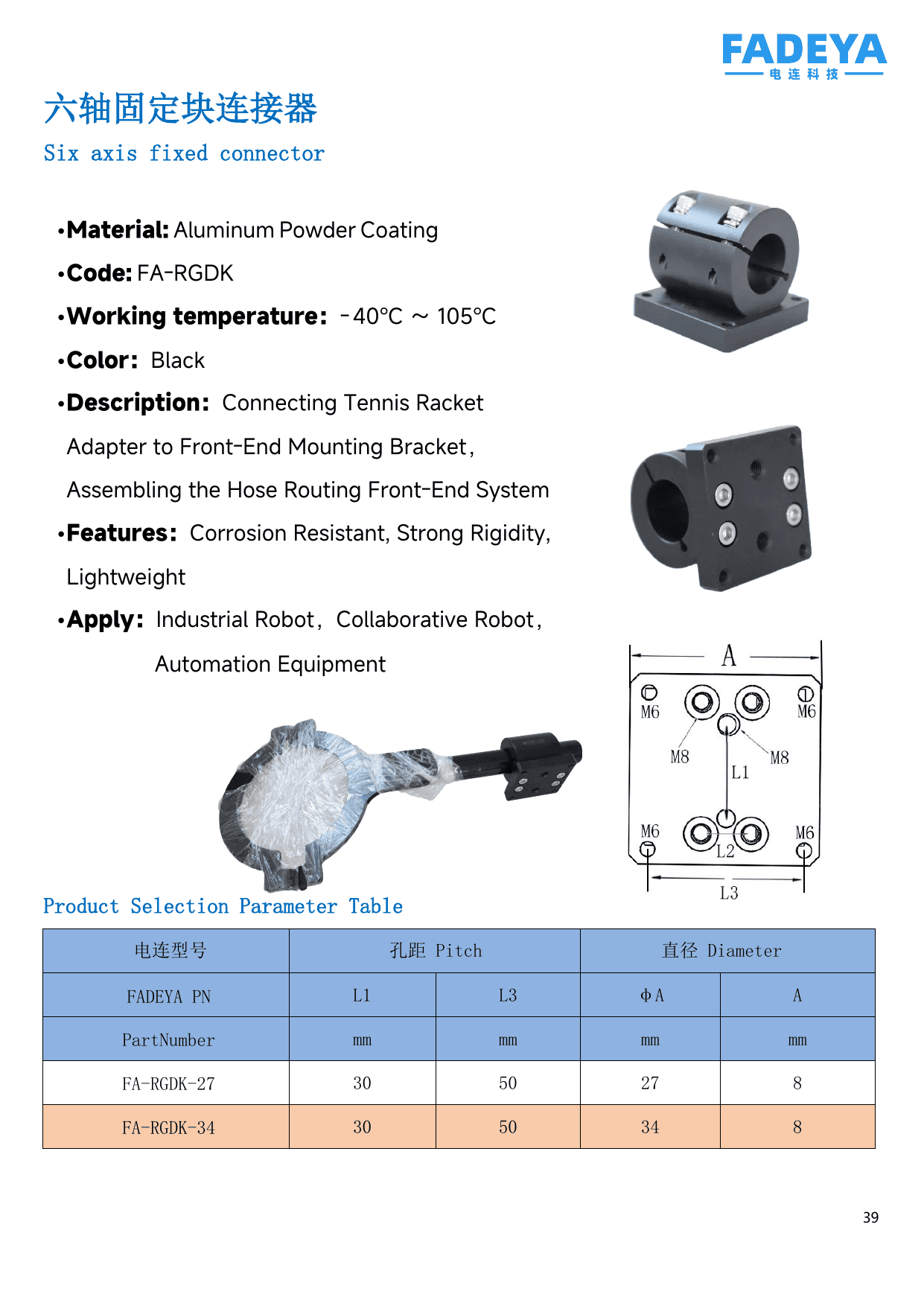

Datasheet
