Flange Connectors & Mounts
Universal Rotating Disc
Download the complete PDF catalogue for full specifications and ordering details.
Part Numbers
FA-RGMX-T60
Sizes are designated by hose ID (e.g. 36 = Ø36 mm). Brackets, accessories and telescopic boxes are selected to match the chosen hose diameter. Working temperature -40 °C to +105 °C across the range.
Technical Parameters
| Material | Aluminum, powder-coated |
| Part Code | FA-RGMX-T60 |
| Working Temperature | -40 °C to +105 °C |
| Color | Black |
| Hole Pattern | Pitch 50×30, base Ø60 |
| Features | Used with a fixed bracket for 360° rotation; corrosion-resistant, lightweight |
| Certification | CE · RoHS |

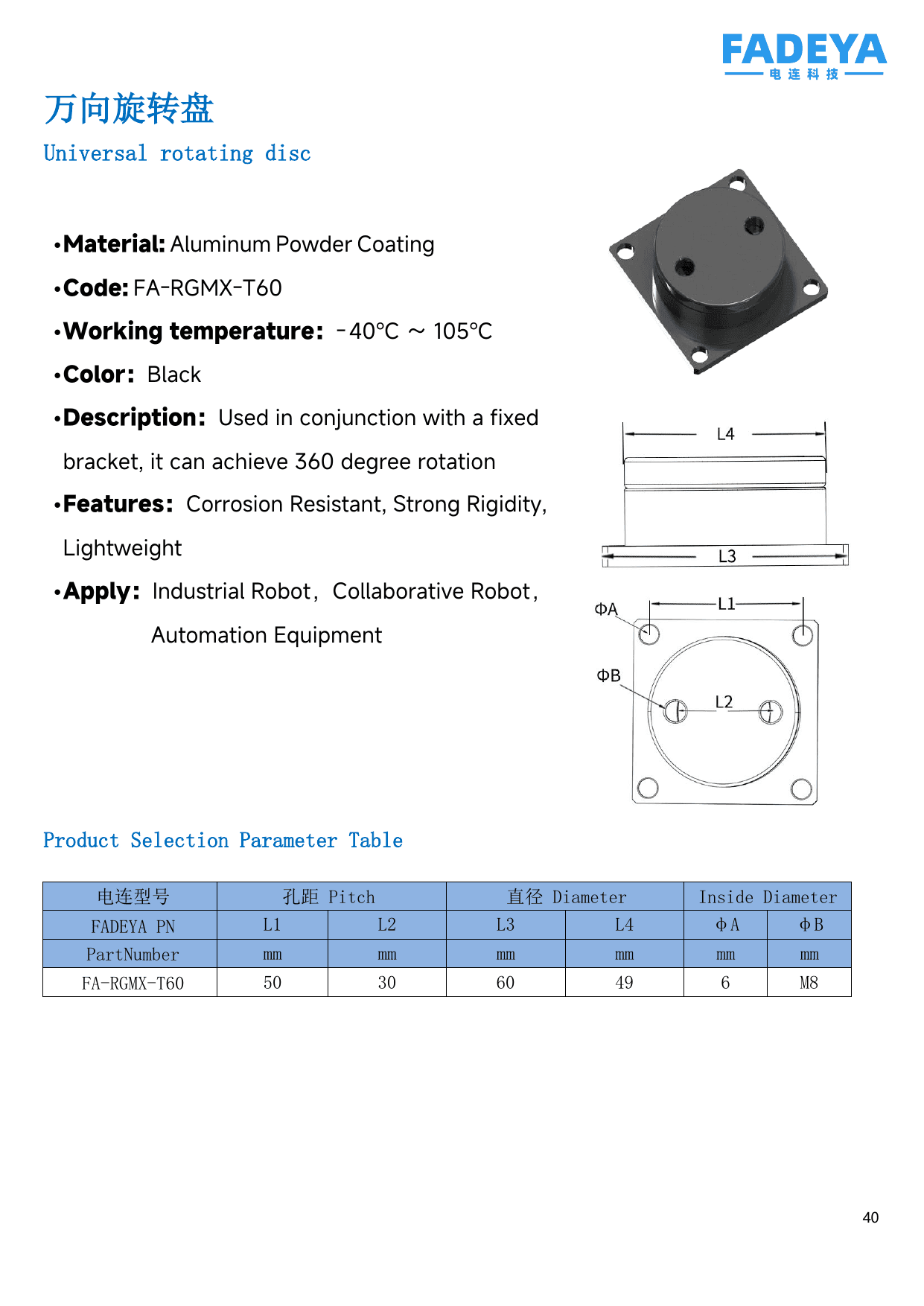

Datasheet
